- Material:PVC
- Use:MASKING
- Adhesive Side:Single Sided
- Adhesive:Rubber
- Adhesive Type:Pressure Sensitive
- Feature:Waterproof
- Design Printing:No printing
- Place of Origin:CN;HEB
- Brand Name:liantu
- Model Number:J30

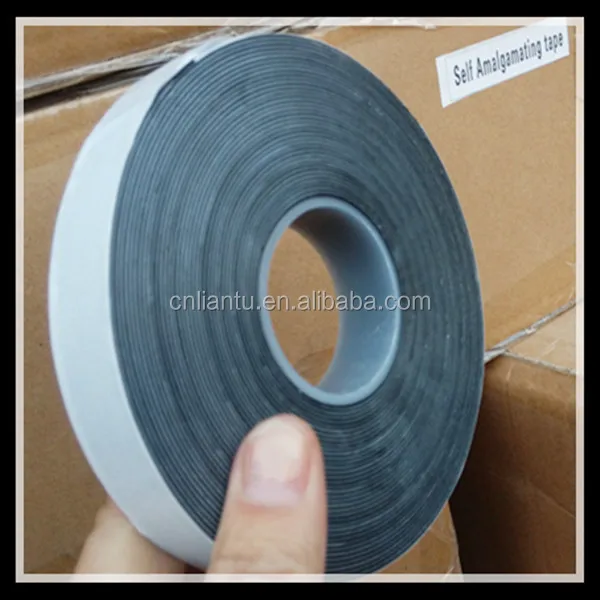

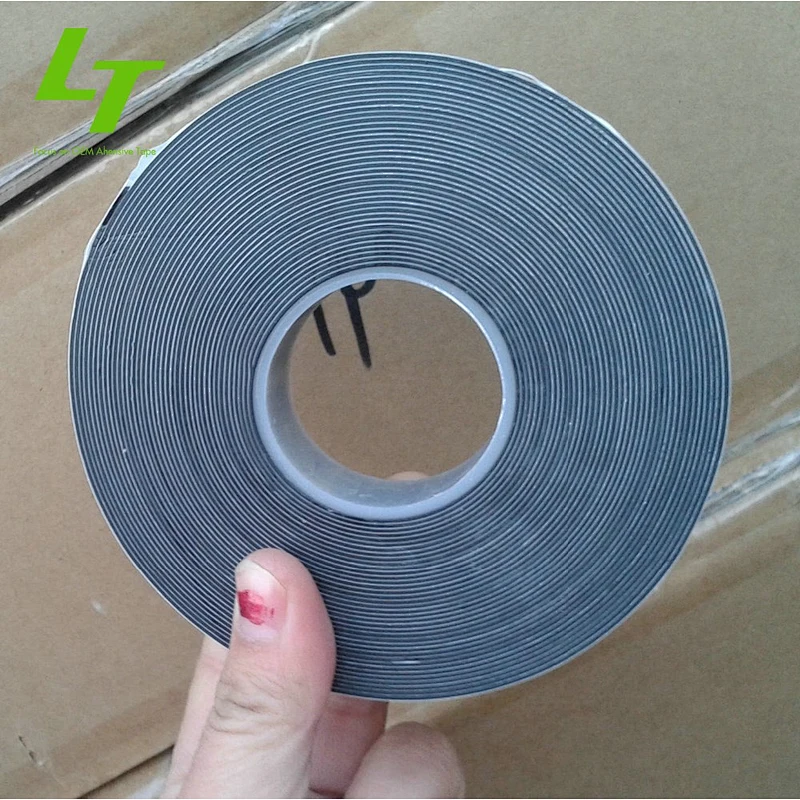

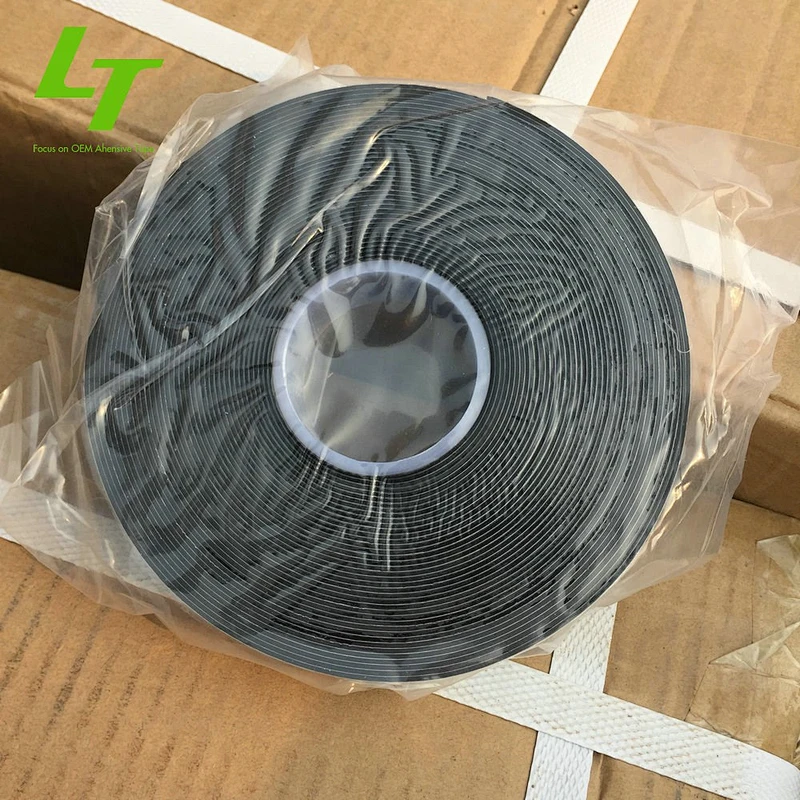

China supplier White liner self insulating rubber splicing tape
self insulating rubber splicing tape for Insulating and Protecting Joins and terminations of Cables.
A range of tapes which amalgamate (bond together) when applied under tension as an insulation wrap.
Material: Ethylene-propylene rubber(EPR).

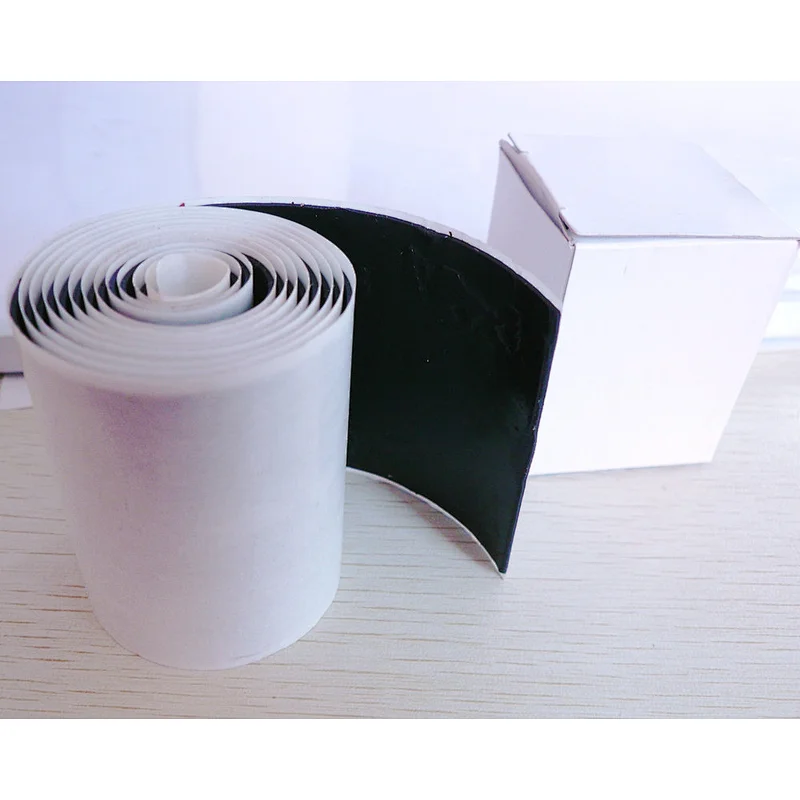

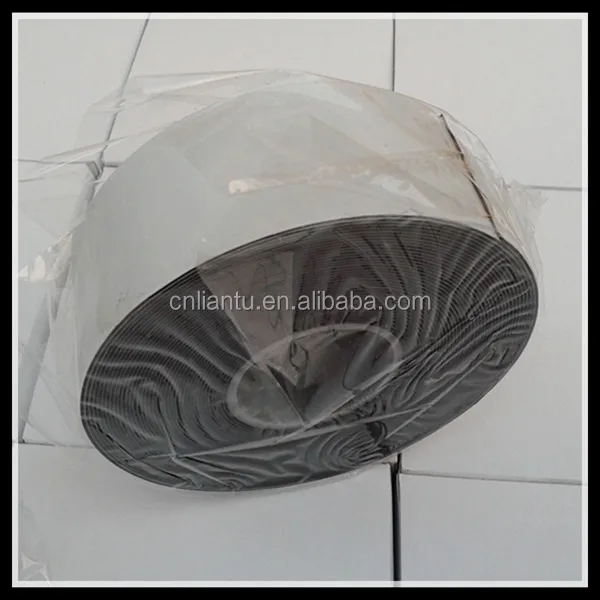

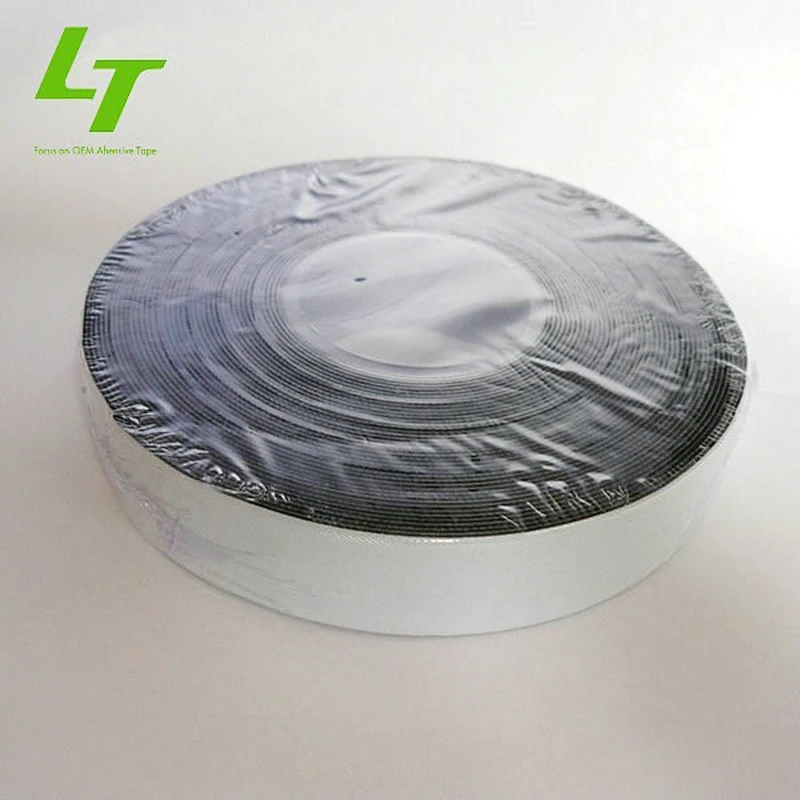

Color:black material,black or white liner(release film)
They become a homogeneous, voidfree mass without need for external heat or pressure.

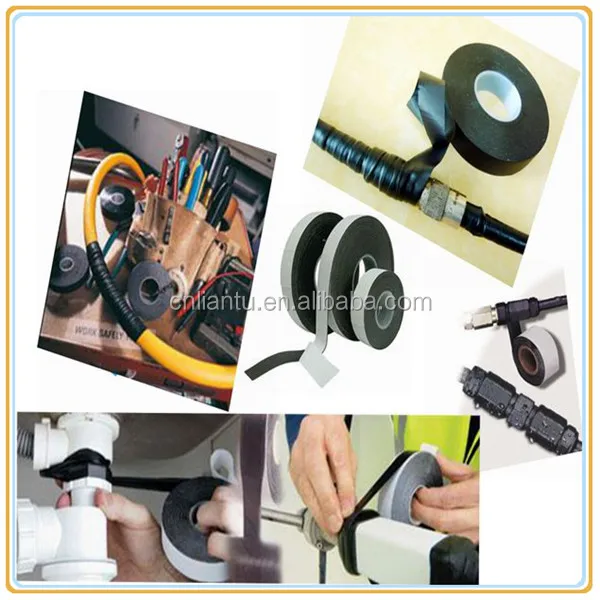

The main applications are for high voltage electrical insulation, moisture proofing and
corrosion prevention for telecommunication and other industrial uses.
The tapes are flexible and versatile in application. They can be easily applied by hand,
contouring closely to irregular shapes and bends to form a permanent insulation layer
or waterproofing barrier.
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
J201 | 19mm | 8m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J202 | 19mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J203 | 19mm | 10m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J205 | 38mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J206 | 50mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J20-1 | 19mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-2 | 38mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-3 | 50mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
How to use? China supplier White liner self insulating rubber splicing tape
1. Clean adequately the surface of the object
2. Stretching it about twice the length with the adhesive side inside
3. Wind the tape half-lapped without getting wrinkled
4. Take care not to stretch it too tightly at the end of lapping
5. Cut the tape using scissors or knife, then press it enough
6.Where tape may be subject to abrasion or exposure to weather an external covering
with a high quality PVC tape is recommended.

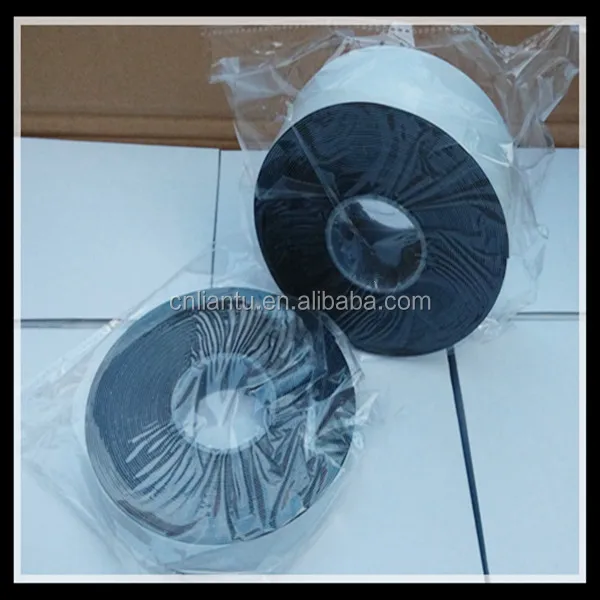

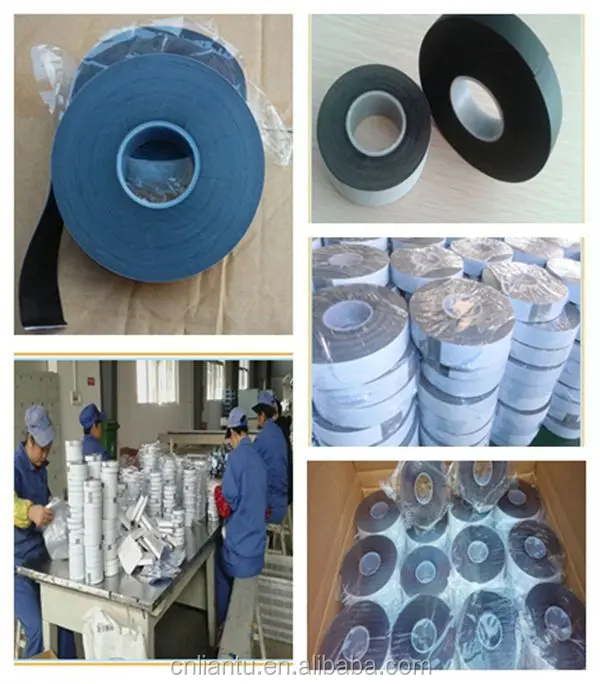

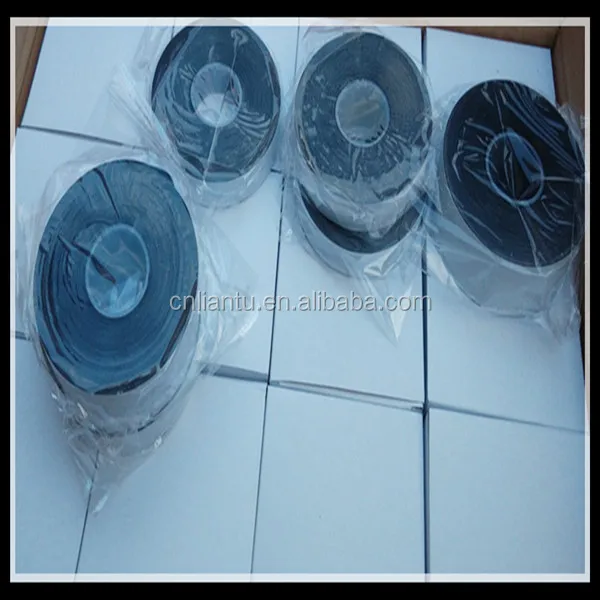

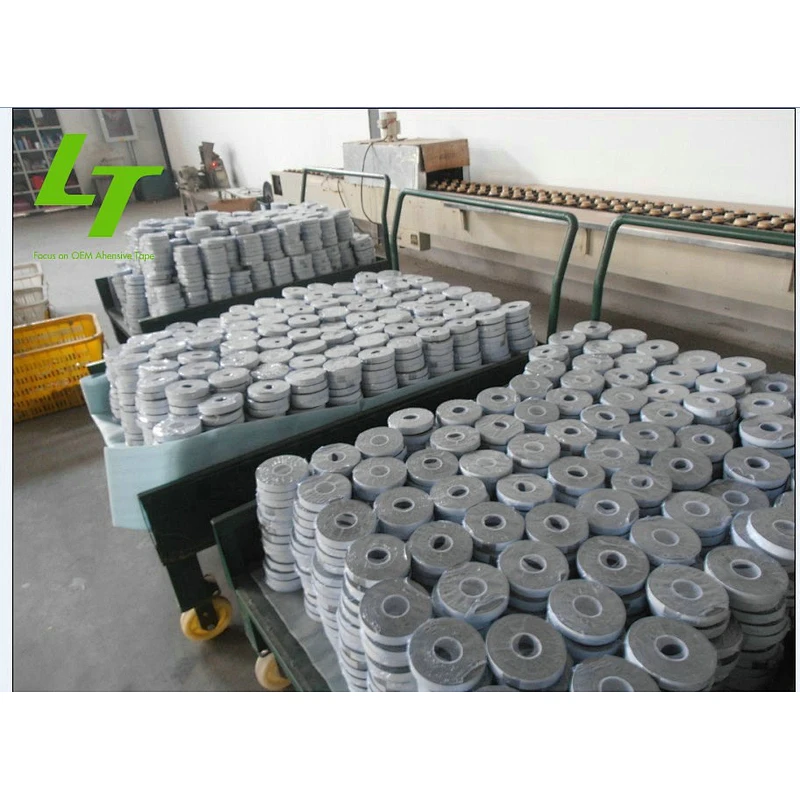

Packing: pp bag wrapped individually,(can be within small paper box),36/60/72/100rolls
per carton.
If you need self insulating rubber splicing tape,pls inquiry with detail size and quantity.
Thanks for your looking.Pls feel free to contact us.
