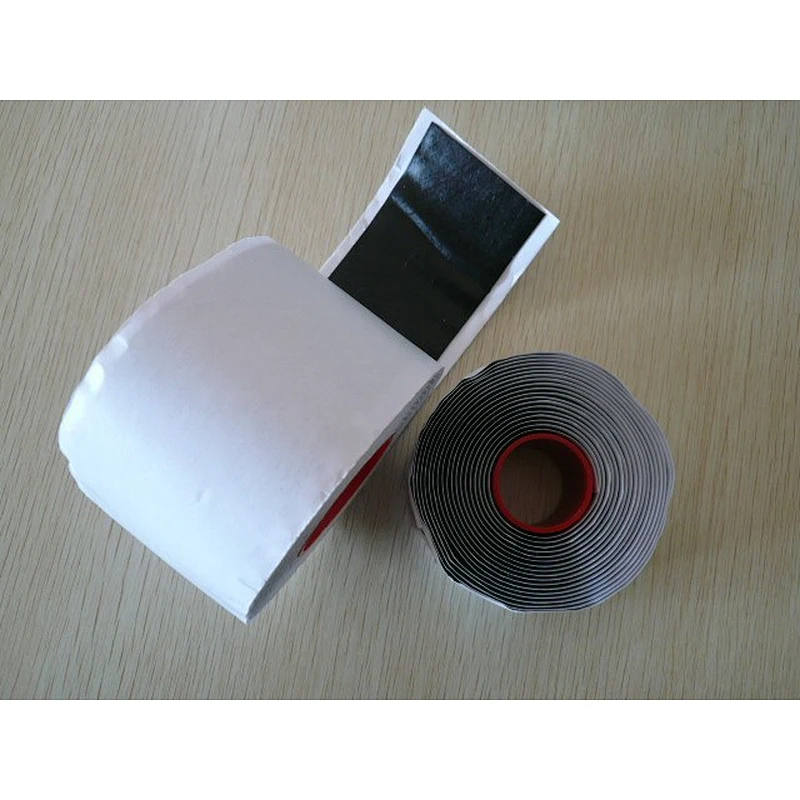

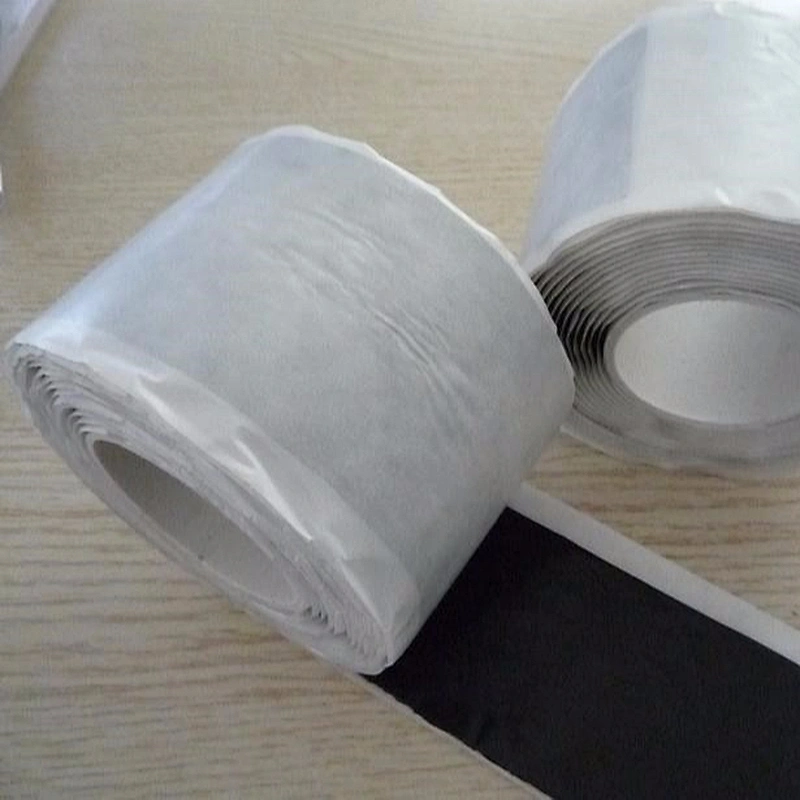

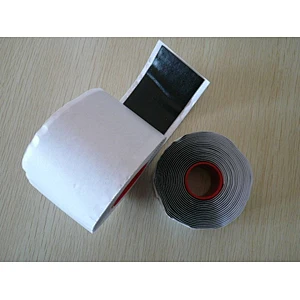

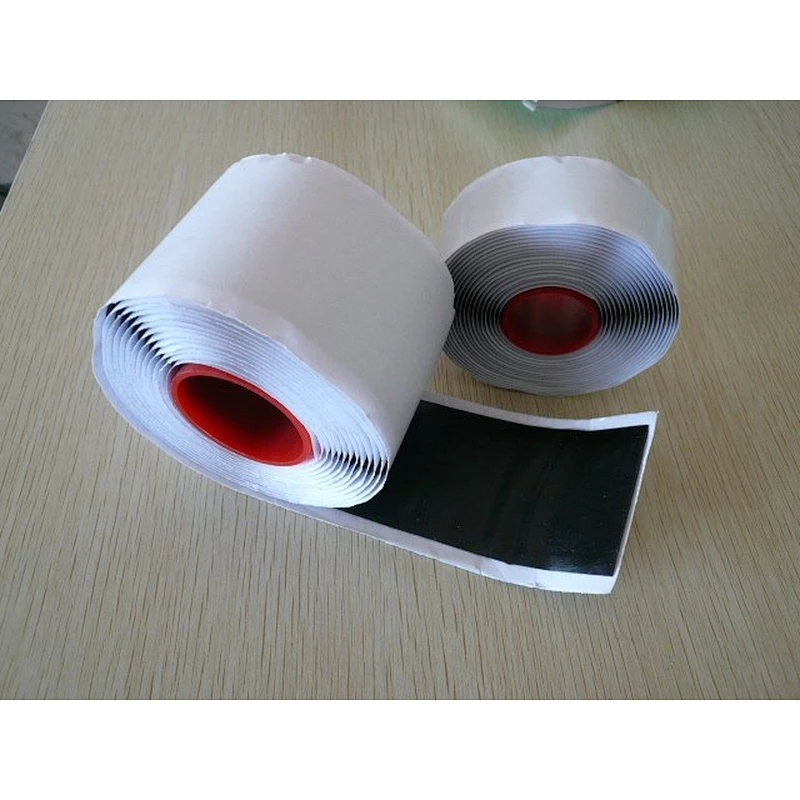

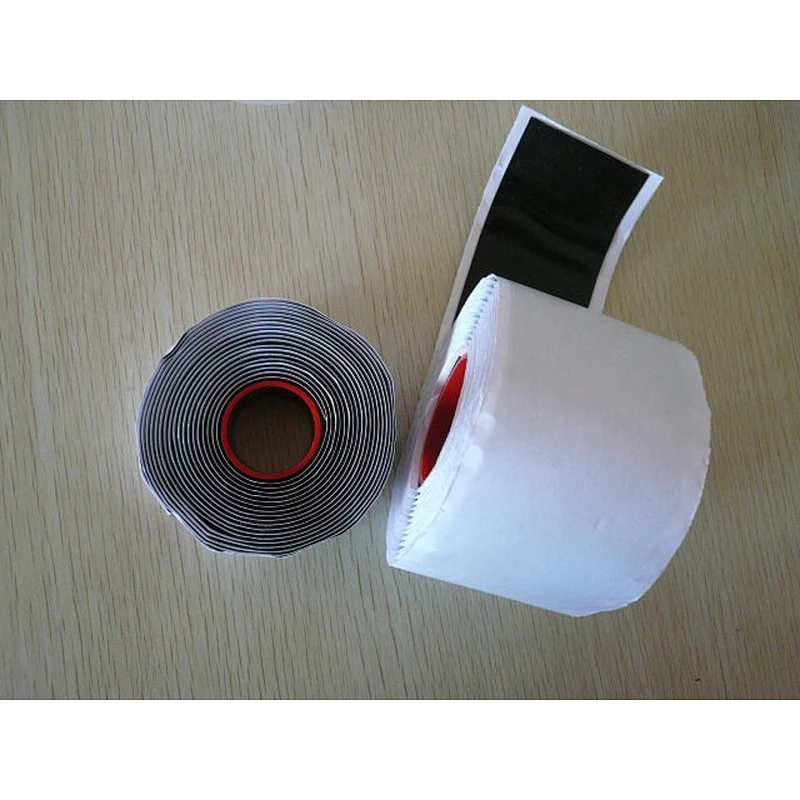

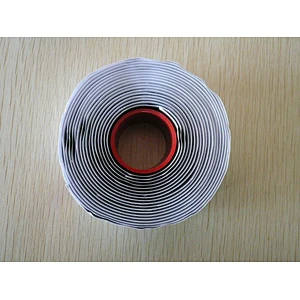

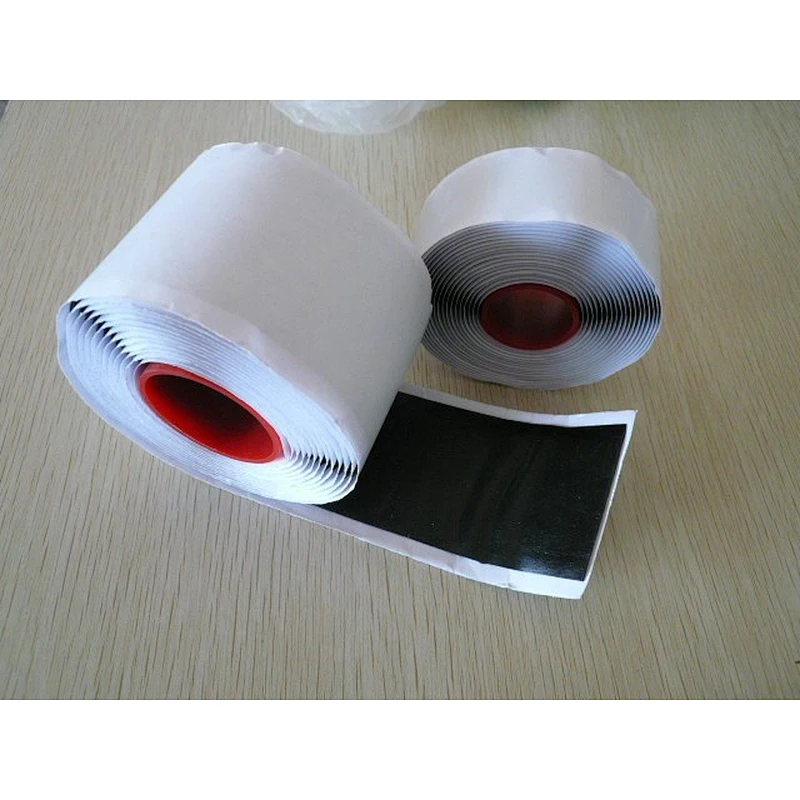

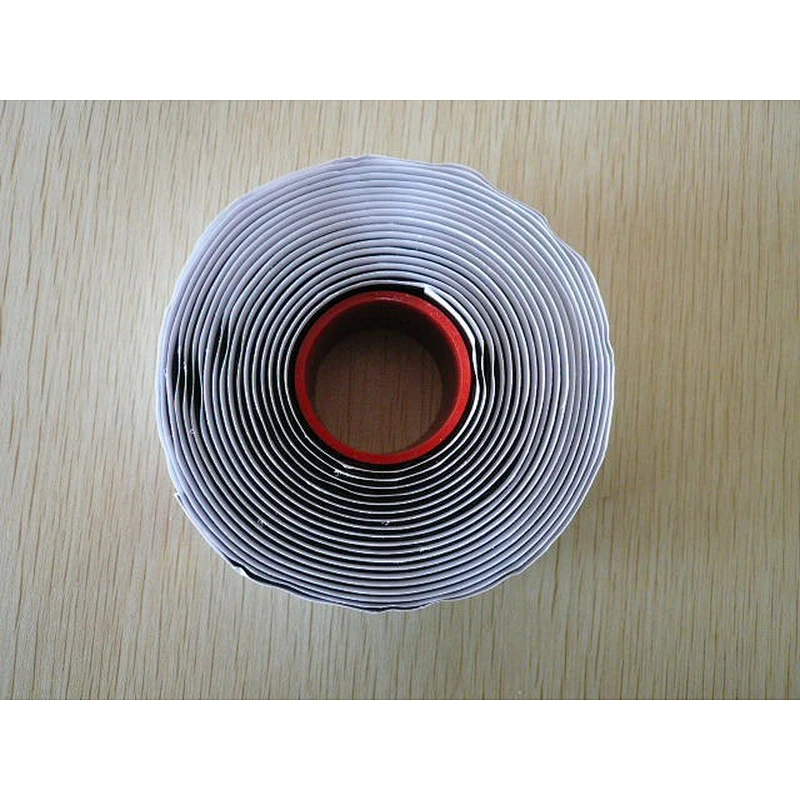

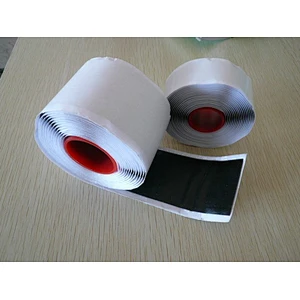

Cintas con masilla de butilo Butyl mastic tape
Self adhesive rubber splicing tape
(SELF AMALGAMATING TAPE)
APPLICATIONS:
This tape made of EPR rubber or excellent high quality natural rubber, Below 92 °C and insulative sealing for communications cable connections, pipeline protection remedy and water-proof sealing.
COMPOSITION:
1.Ethylene-propylene rubber, Natural rubber
2. Liner-PVC/PE
PROPERTIES:
1. Thickness of tape: 750 µm
2. Working temperature range: from -50C to +90C
3.Elongation at break: not less than 500%
4.Thermal tolerance: up to +90, short moment up to +130C
5. Electrical resistivity: 1*106 HM
6. Insulating strength (breakdown voltage): not less than 10 kV
SPECIFICATIONS:
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
J201 | 19mm | 8m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J202 | 19mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J203 | 19mm | 10m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J204 | 24mm | 5m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J205 | 38mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J206 | 50mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J20-1 | 19mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-2 | 38mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-3 | 50mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
Individual package: each roll is packed in a plastic bag, or as clients request can make brand carton box packing.
1.Different size and colour is available
tape Thickness: 0.10mm,0.11mm, 0.12mm, 0.13mm, 0.15mm, 0.165mm, 0.18mm, 0.20mm, 0.25mm, 0.40mm
tape Width: 14mm,15mm,16mm,17mm,18mm,19mm
tape Length;4m, 7m, 7.5m, 8m, 10m,18m,20m,30m
color: we can mack many colors if you can give us a color No. or samples.
2. packing as request:
For example size: 0.13mmx19mmx20m
General package: each roll a wrap by a cellophane ed with a paper label, 10 rolls a shrink, then 200rolls a cartons
Or each roll a shrink with a paper label
Or each roll a shrink with your brand logo printed on the cellophane.
Or each roll a plastic bag then pack with a colored logo printed box, then 180rolls/carton
Or no paper label pack with 10rolls/shrink
3.Paper label and paper core make logo
General : blank paper core with 2mm,3mm or 4mm
Or : paper label print your logo with 1/2/3 colors printed,small orders also FREE of charge
Or : paper core print your logo with 1/2/3 colors printed,bulk orders FREE of Charge
Or as your request
4. small order is acceptable
we are industrial bulk produce, but for general size and packing, we accept small orders, quantity as your request.
this kind of sample order we can receive money from Western Unin or Paypal and delivery by express or HCL,FCL
5.. OEM is welcome
We can make your request brand logo embossed on the film, printed inner the paper core, make a paper label, or make logo on the cellophane then wrap the tape, colored logo printed box packing
FR GRADE or Non FR grade as request.
All could according to customers' requirement
6.how to order with us: our skype and ali messager open 25hours one day for you!
7. PAYMENT
Western Unin or Paypal, TT, L/C, E-Credit,Cash or other ways you can advice.
