- Place of Origin:CN;HEB
- Adhesive Type:Pressure Sensitive
- Material:PVC
- Use:MASKING
- Adhesive Side:Single Sided
- Model Number:J20,J30
- Brand Name:liantu
- Design Printing:No printing
- Adhesive:Rubber
- Feature:Waterproof

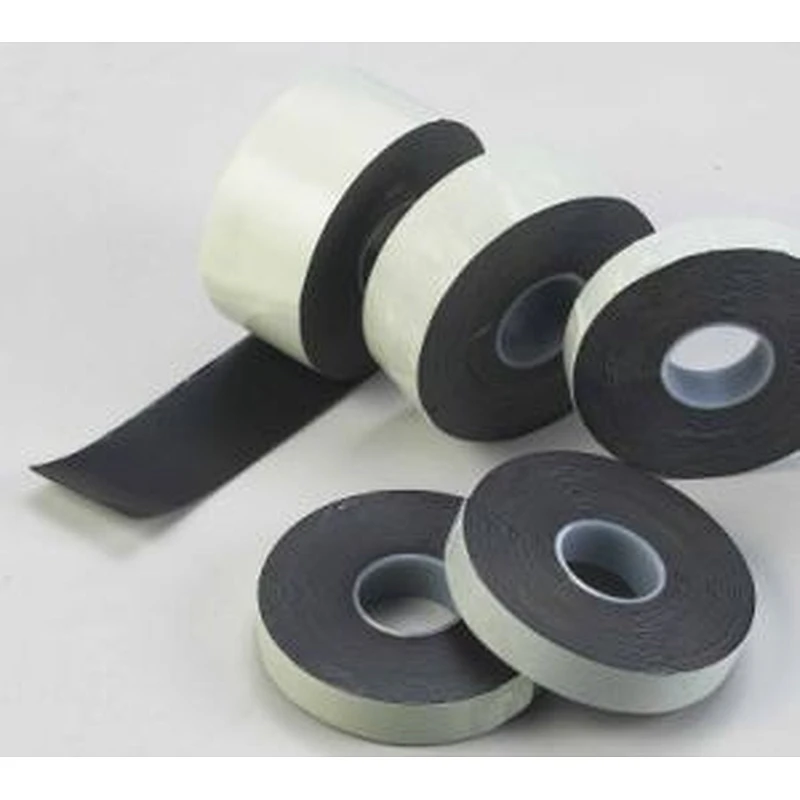

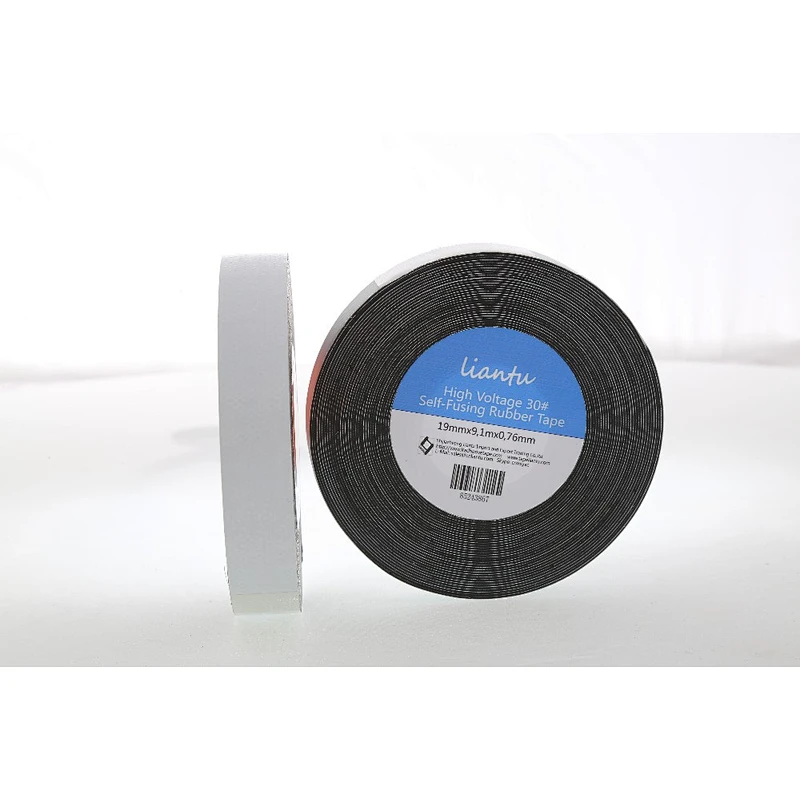

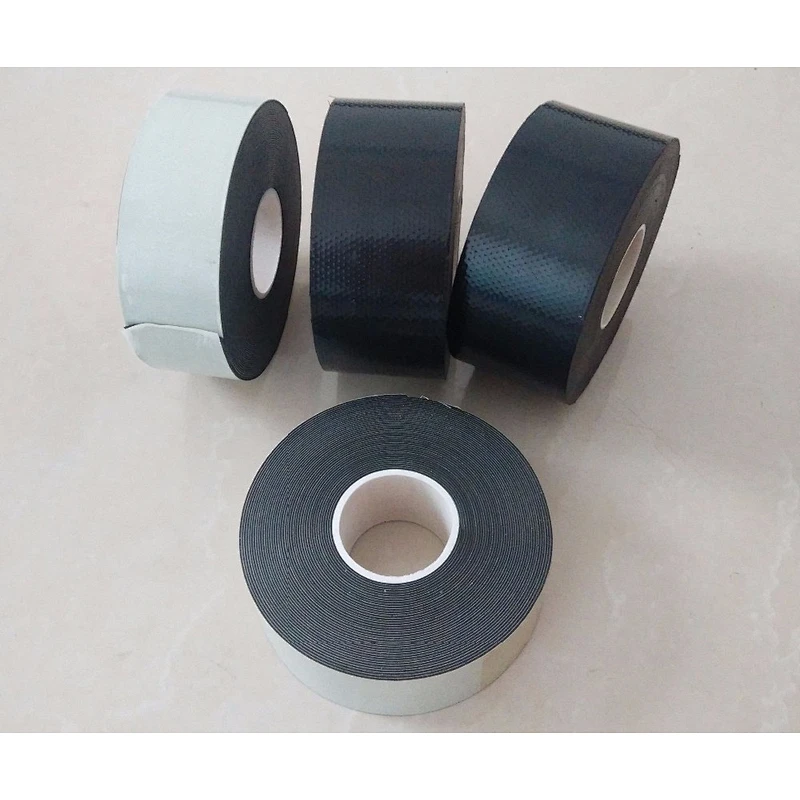

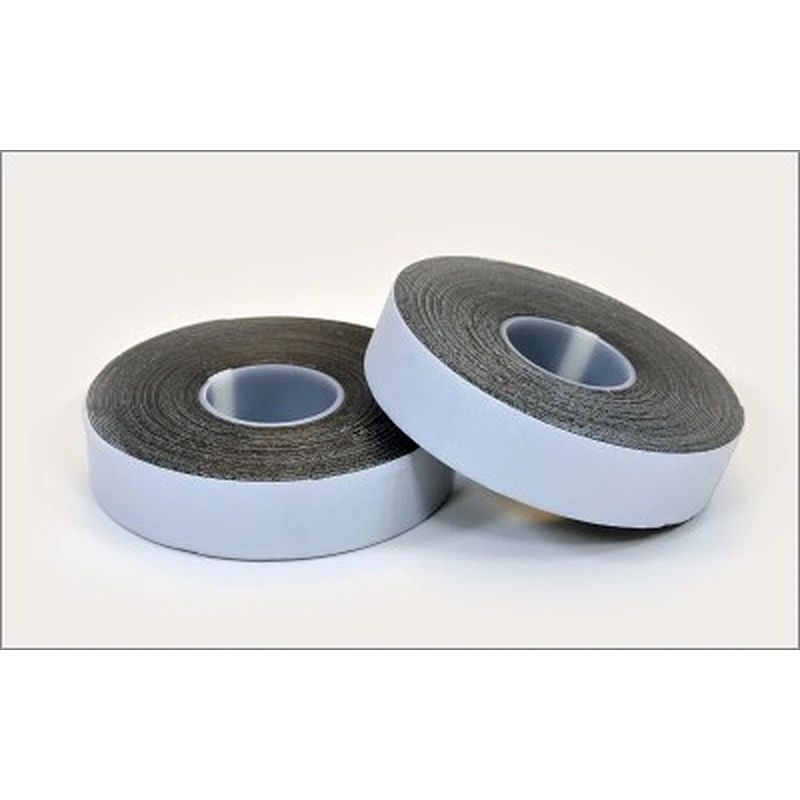

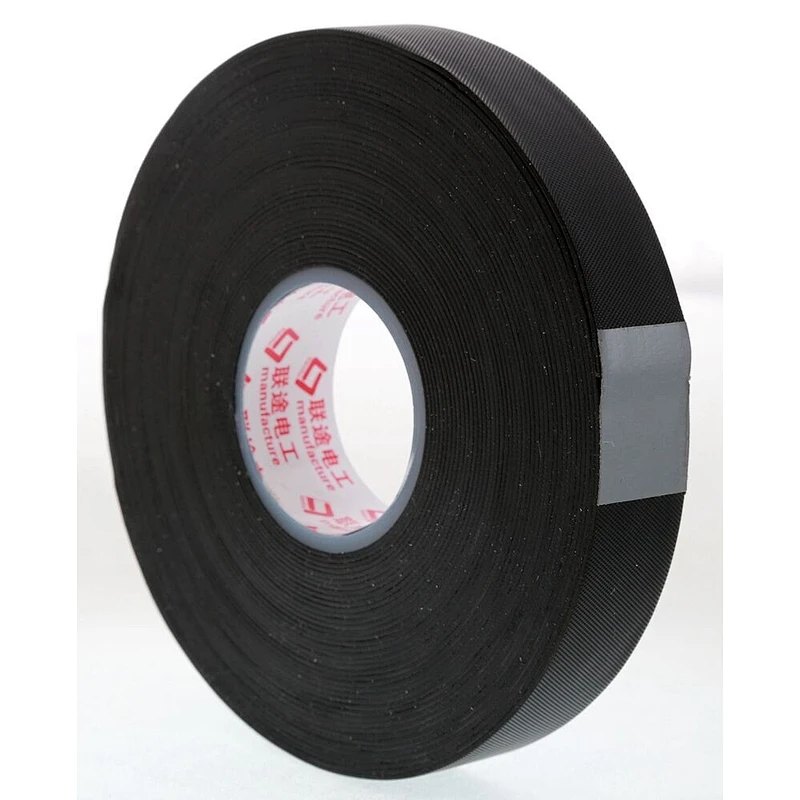

EPR rubber HT tape high tension tape for Zambia
High tension tape for Insulating and Protecting Joins and terminations of Cables

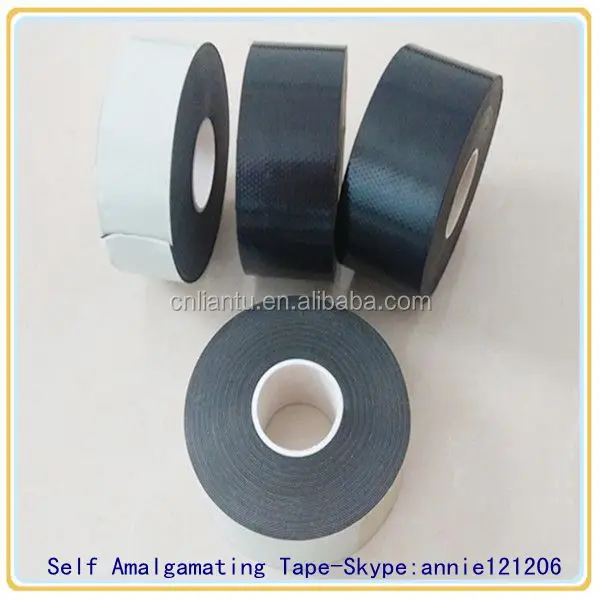

A range of tapes which amalgamate (bond together) when applied under tension as an insulation wrap.
Material: Ethylene-propylene rubber(EPR)
Color:black material,black or white liner(release film)
They become a homogeneous, voidfree mass without need for external heat or pressure.
The main applications are for high voltage electrical insulation, moisture proofing and
corrosion prevention for telecommunication and other industrial uses.
The tapes are flexible and versatile in application. They can be easily applied by hand,
contouring closely to irregular shapes and bends to form a permanent insulation layer
or waterproofing barrier.
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
J201 | 19mm | 8m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J202 | 19mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J203 | 19mm | 10m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J205 | 38mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J206 | 50mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J20-1 | 19mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-2 | 38mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-3 | 50mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
How to use?
1. Clean adequately the surface of the object
2. Stretching it about twice the length with the adhesive side inside
3. Wind the tape half-lapped without getting wrinkled
4. Take care not to stretch it too tightly at the end of lapping
5. Cut the tape using scissors or knife, then press it enough
6.Where tape may be subject to abrasion or exposure to weather an external covering
with a high quality PVC tape is recommended.

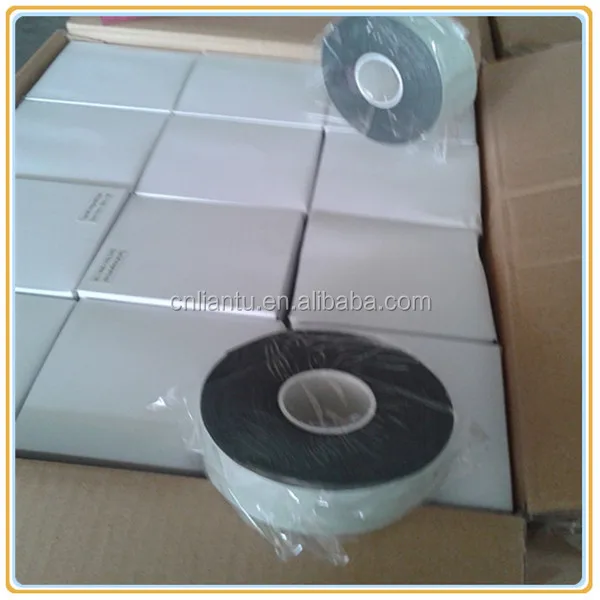

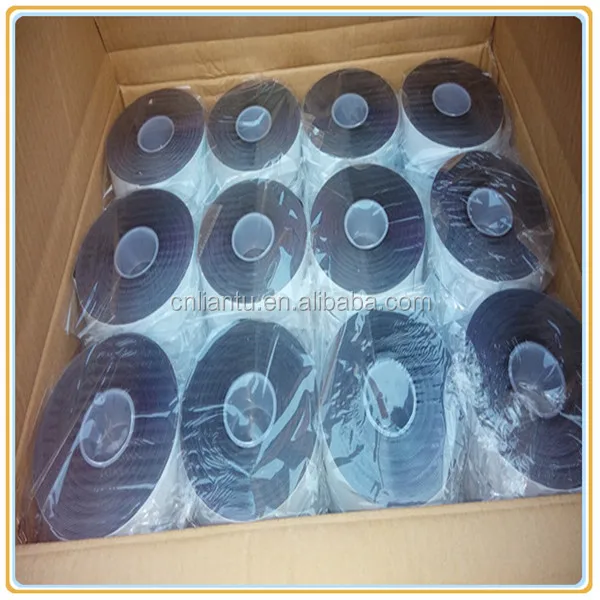

Packing:
- Samples can be supplied for check quality.
- OEM is welcomed.
- Your inquiry will be reply A.S.A.P.
We-LianTu-Professional focus on pvc tape and self amalgamating tape.
Click the picture fore view more surprise.

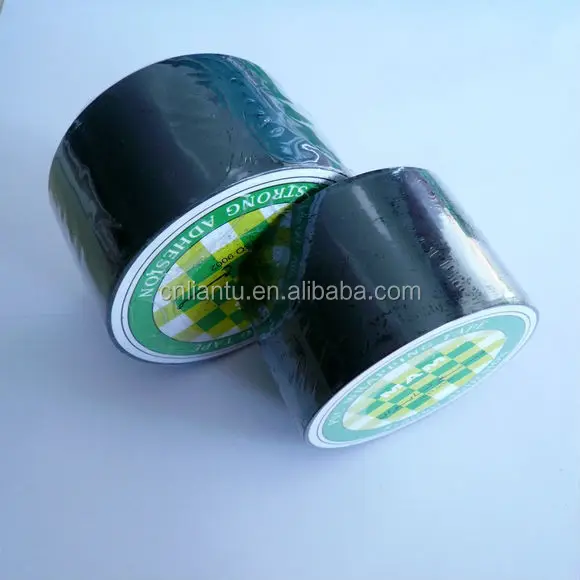

PVC pipe wrapping tape
1.Payment Terms?
5.How to contact us?
Thanks for your looking. Pls feel free to contact us if you interested.
Our self amalgamating tape is loved by the clients from USA,Spain,Iran,India,
Zambia etc.
Welcome your inquiry if you interested. Thanks for your looking.
