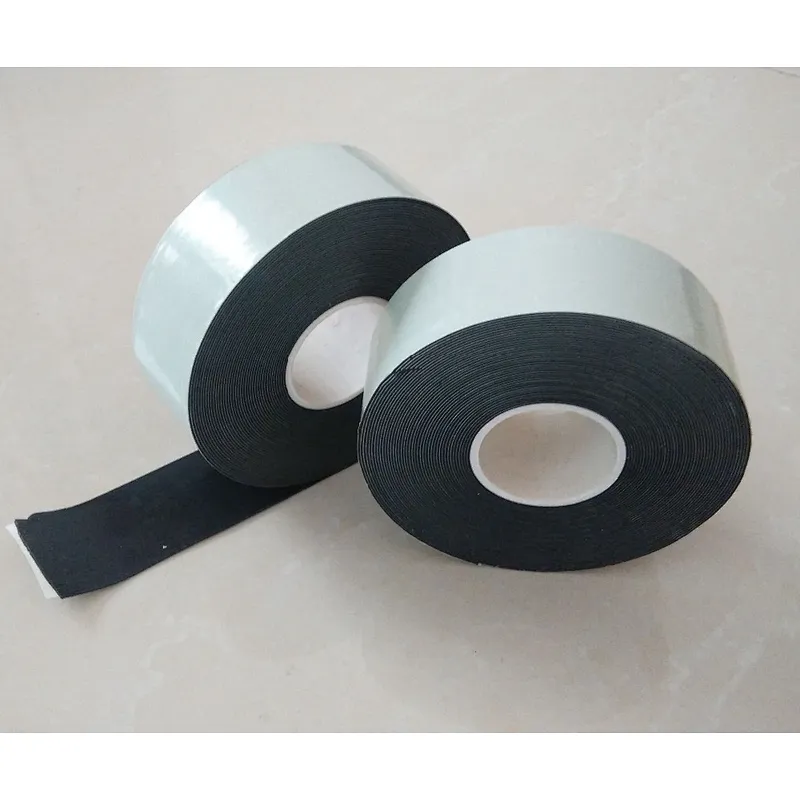

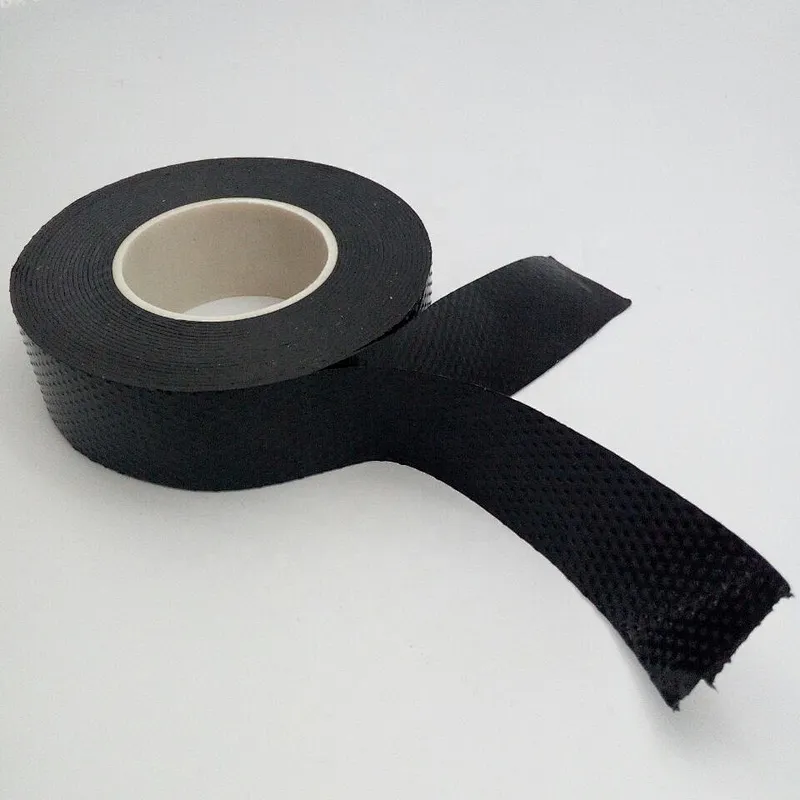

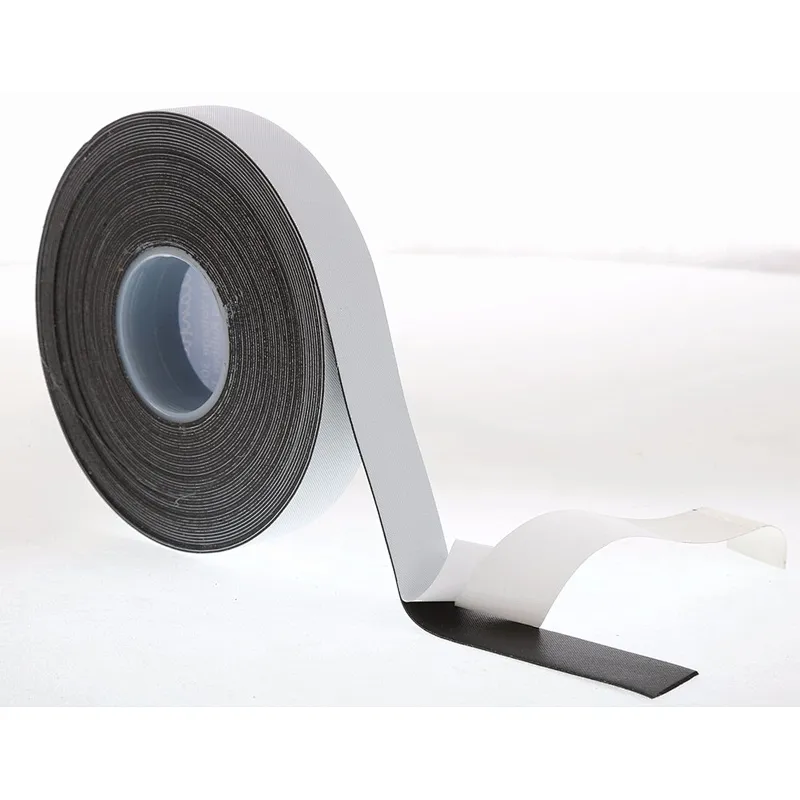

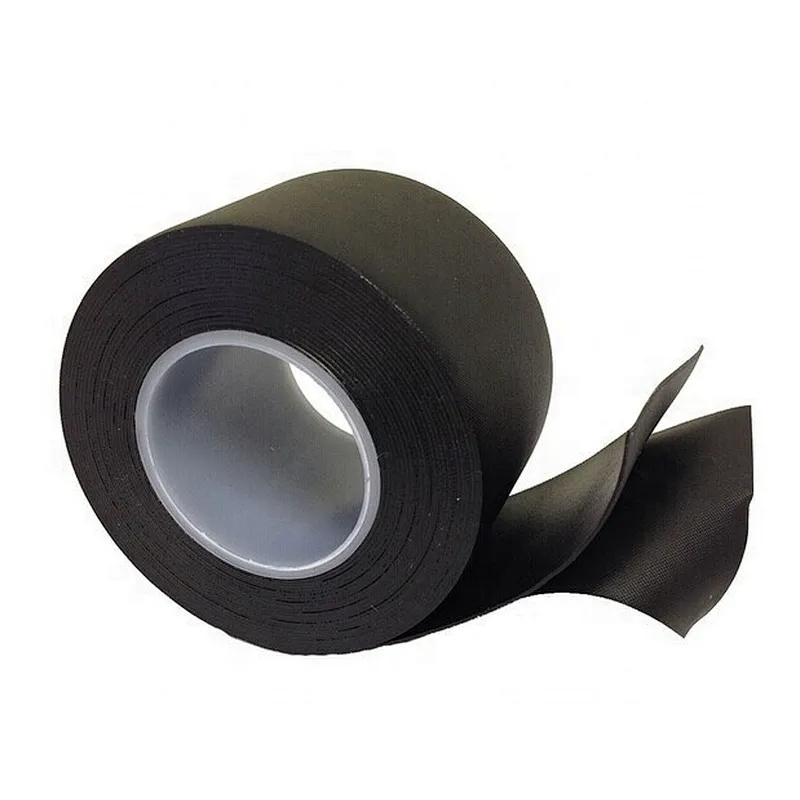

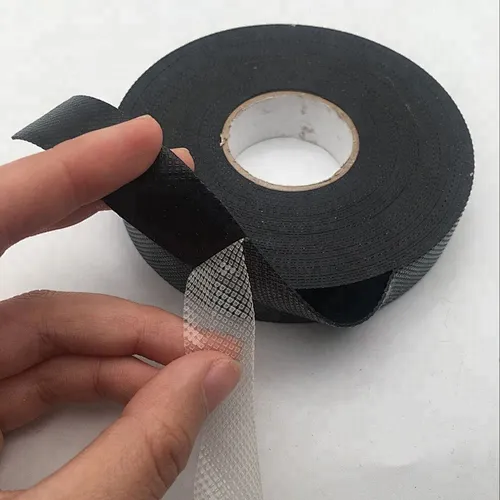

This tape is a self amalgamating , low voltage rubber tape which meets the requirements of ASTM-D-4388,Type I, It easily conforms to irregular shapes and surfaces yielding a void free, electrically stable build up. Compatabile with all extruded dielectric cable insulation.
Property
Value
Unit
Text Method
Total thickness
0.76
mm
ASTM-D-4325
tensile strength
250
psi
ASTM-D-4325
Elongation at break
400
%
ASTM-D-4325
contiouous Operation Temperature
80
℃
ASTM-D-4325
Emergency Overload Temperature
95
℃
ASTM-D-4325
Dieletric
20
KV/mm
ASTM-D-4325
Date in table represent average text results are not be used for specification purpose.
Standard sizes
Standard sizes
thickness
width
length
0.5mm
19mm
9m
0.76mm
19mm
9m
0.76mm
25mm
9m
0.76mm
38mm
9m
other size and corse are available customization.
Recommend Uses
Recommend Uses
For insulating of splices on solid dielectric cable from 2KV to 10KV in conjunction with a jacket tape.
