- Use:Warning
- Adhesive Side:Single Sided
- Adhesive:Rubber
- Adhesive Type:Pressure Sensitive
- Feature:Heat-Resistant
- Design Printing:Offer Printing
- Place of Origin:CN;HEB
- Material:rubber
- Brand Name:leto
- Model Number:leto201
alibaba in russian fire extinguisher rubber splicing tape factory

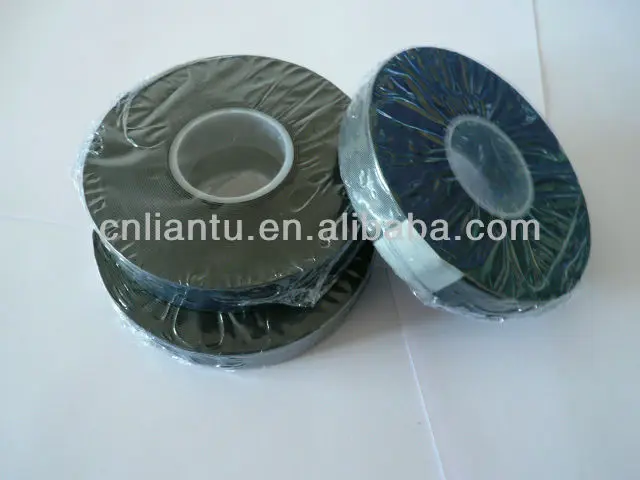

High voltage rubber insulation fusing tape

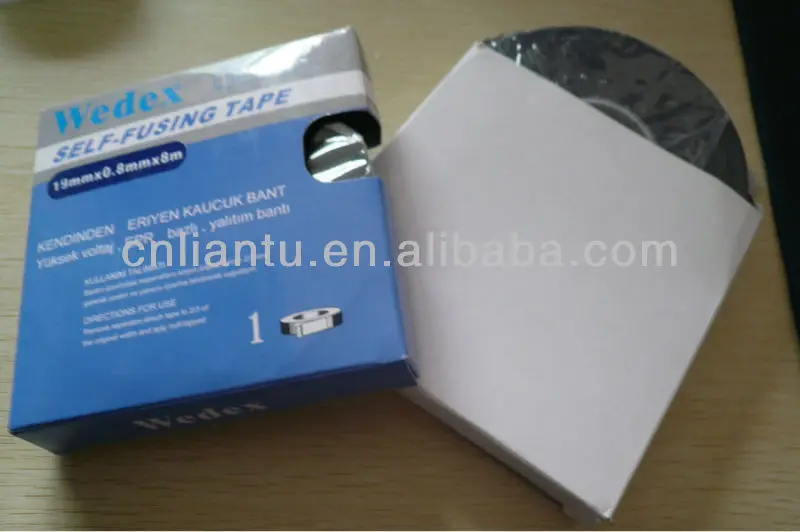

Self-Fusing electrical tapeHIGH VOLTAGE SELF-ADHESIVE FUSING TAPE (SELF AMALGAMATING TAPE)
Rubber fusing tape :Applies to work no more than 75 centigrade degrees, the voltage do not exceed 10KV cable terminal connections and communications cable connector seal, such as mining cables, submersible pump cables, etc.
SPECIFICATIONS:
No.1
Material: Ethylene propylene rubber
Thickness: 0.75mm-0.8mm
Color: black
Tensile strength ≥13N/10mm
Maximum elongalion %≥1000%
Disruptive test, kv/mm ≥31KV/mm
Working Temperature: 90-130°C
Pressure resistant :1.7MPA
No.2
Material: Ethylene propylene rubber
Thickness: 0.75mm-0.8mm
Color: black
Tensile strength ≥13N/10mm
Maximum elongalion %≥300%
Disruptive test, kv/mm ≥14KV/mm
Working Temperature: 80-95°C
Pressure resistant :1.7MP
TEST REPORT
SOURCE: FUSING TAPE SAMPLES 5PCS
TESTING ENVIRONMENT: 25C*50%RH
TEXTING SPECIFICATIONS
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
A | 15-380 | 3.5-12 | 0.5-0.8 | 1.5 | 600 | 11KV | 1X1015 |
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
AA | 15-380 | 3.5-12 | 0.5-0.8 | 1.8 | 800 | 35KV | 1X1015 |
Packing: 1rolls/plastic bag or shrink package, 100rolls/carton
pvc electrical insulation tape
pvc pipe wrapping tape
pvc duct tape
pvc warning tape , black/yellow, white/green, yellow, green, red
1.Different size and colour is available
tape Thickness: 0.10mm,0.11mm, 0.12mm, 0.13mm, 0.15mm, 0.165mm, 0.18mm, 0.20mm, 0.25mm, 0.40mm
tape Width: 14mm,15mm,16mm,17mm,18mm,19mm
tape Length;4m, 7m, 7.5m, 8m, 10m,18m,20m,30m
color: we can mack many colors if you can give us a color No. or samples.
2. packing as request:
For example size: 0.13mmx19mmx20m
General package: each roll a wrap by a cellophane ed with a paper label, 10 rolls a shrink, then 200rolls a cartons
Or each roll a shrink with a paper label
Or each roll a shrink with your brand logo printed on the cellophane.
Or each roll a plastic bag then pack with a colored logo printed box, then 180rolls/carton
Or no paper label pack with 10rolls/shrink
3.Paper label and paper core make logo
General : blank paper core with 2mm,3mm or 4mm
Or : paper label print your logo with 1/2/3 colors printed,small orders also FREE of charge
Or : paper core print your logo with 1/2/3 colors printed,bulk orders FREE of Charge
Or as your request
4. small order is acceptable
we are industrial bulk produce, but for general size and packing, we accept small orders, quantity as your request.
this kind of sample order we can receive money from Western Unin or Paypal and delivery by express or HCL,FCL
5.. OEM is welcome
We can make your request brand logo embossed on the film, printed inner the paper core, make a paper label, or make logo on the cellophane then wrap the tape, colored logo printed box packing
FR GRADE or Non FR grade as request.
All could according to customers' requirement
6.how to order with us: our skype and ali messager open 25hours one day for you!
7. PAYMENT
Western Unin or Paypal, TT, L/C, E-Credit,Cash or other ways you can advice.
