- Place of Origin:CN;HEB
- Brand Name:leto
- Model Number:leto-j20

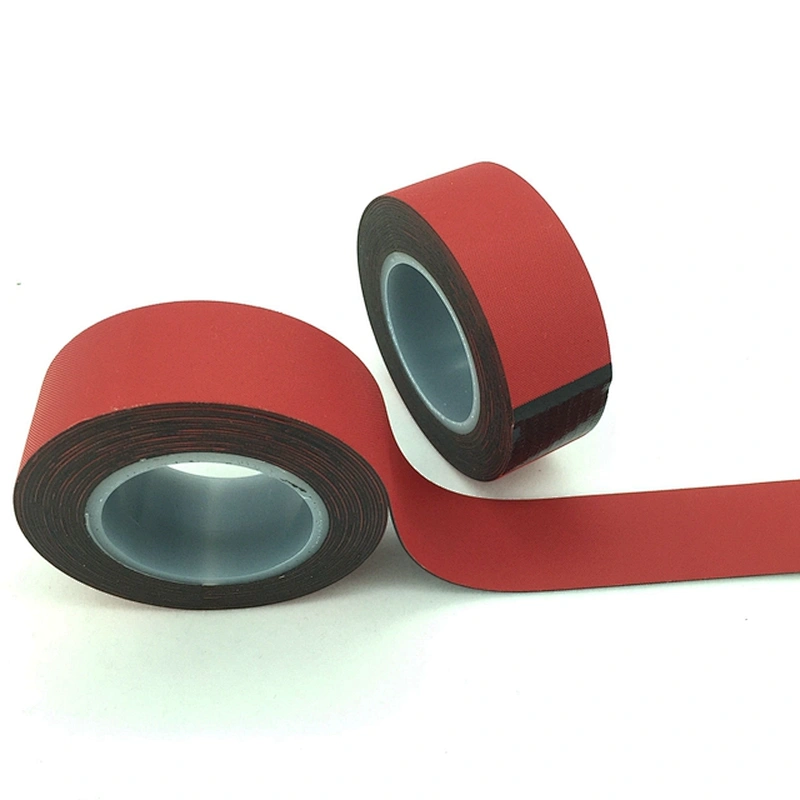

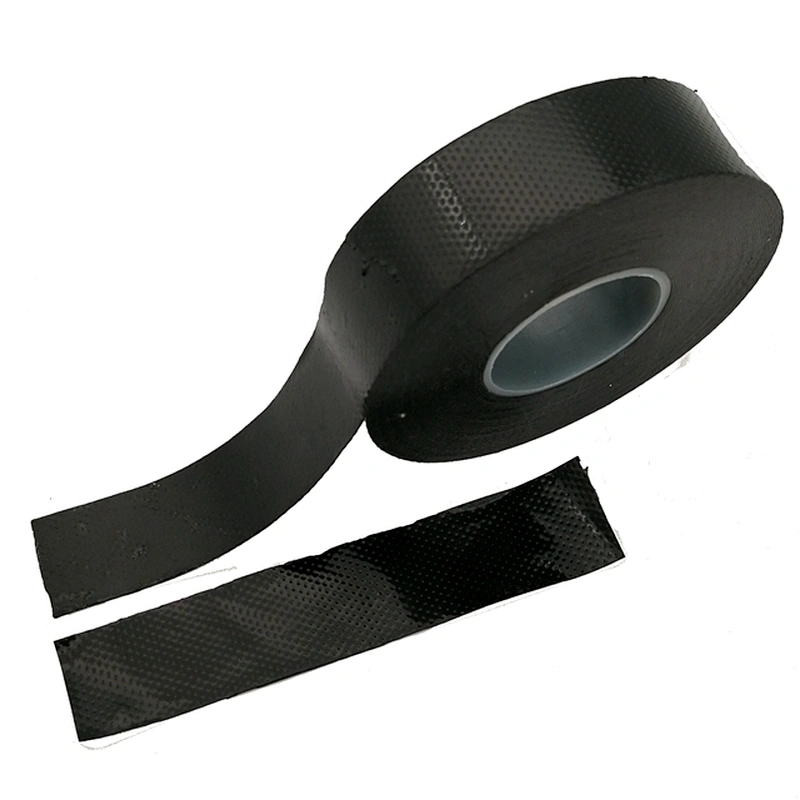

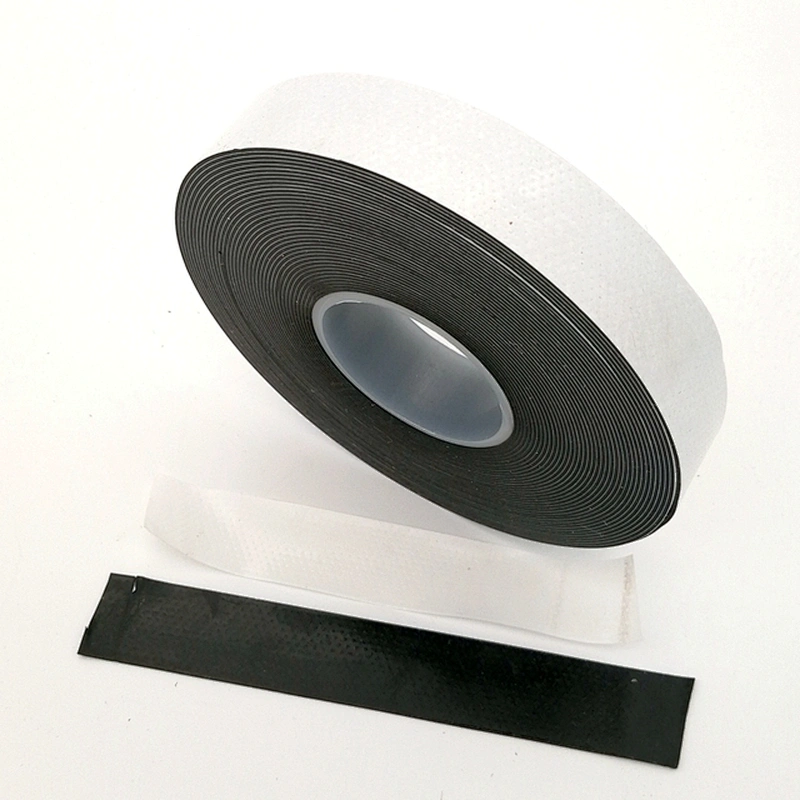

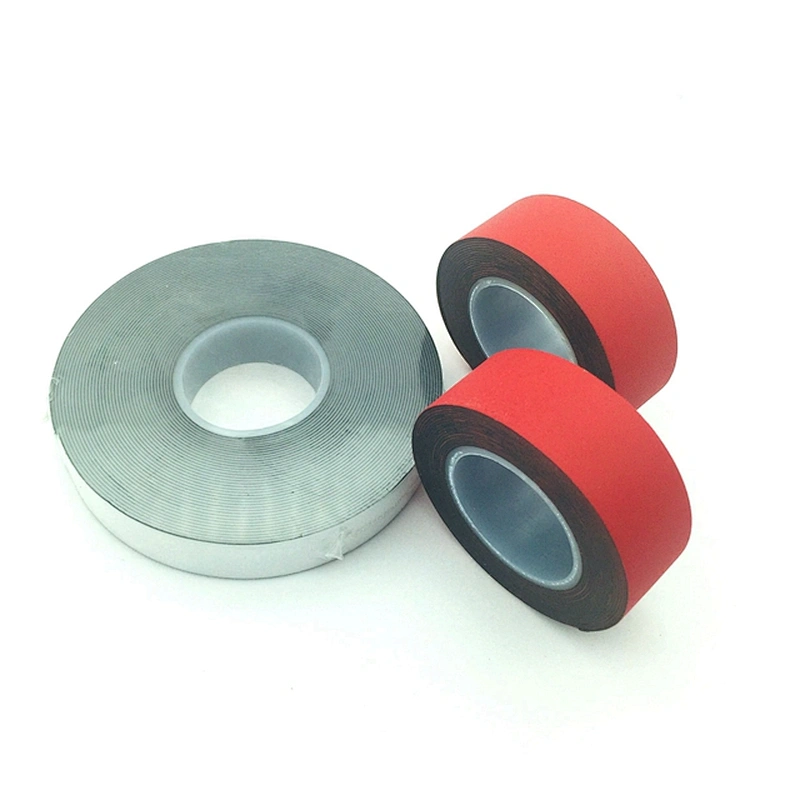

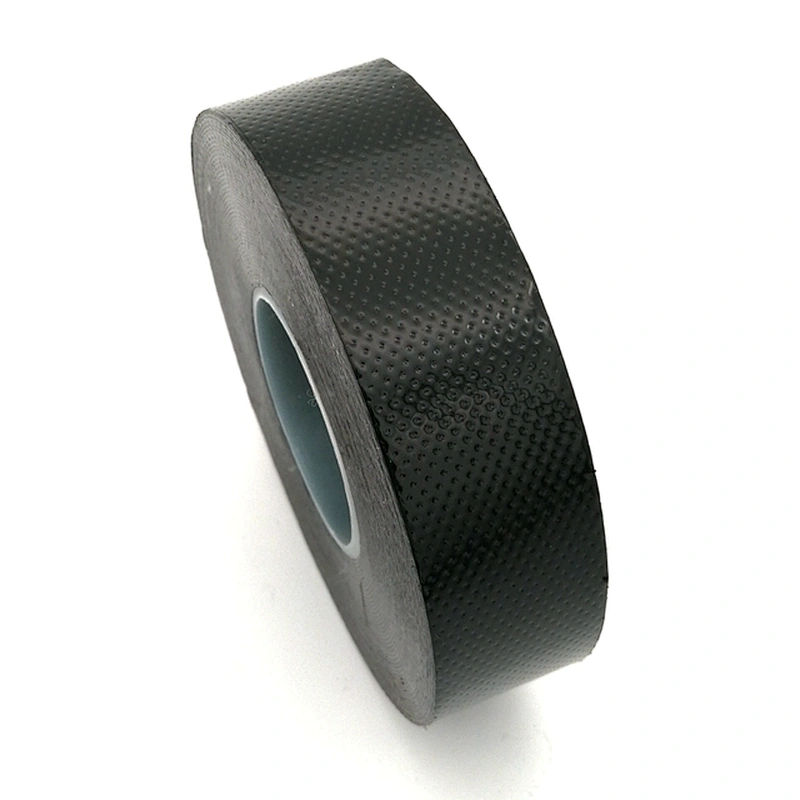

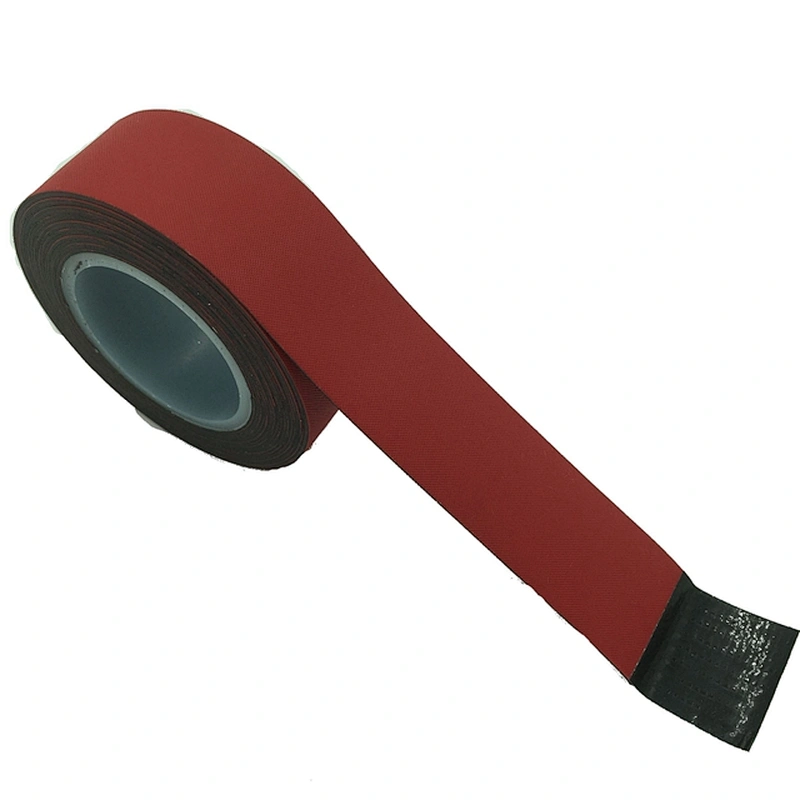

Strong adhesive Double sided self fusing rubber splicing tape
Self adhesive rubber splicing tape
(SELF AMALGAMATING TAPE)
APPLICATIONS:
This tape made of EPR rubber or excellent high quality natural rubber, Below 92 °C and insulative sealing for communications cable connections, pipeline protection remedy and water-proof sealing.
COMPOSITION:
1.Ethylene-propylene rubber, Natural rubber
2. Liner-PVC/PE
PROPERTIES:
1. Thickness of tape: 750 µm
2. Working temperature range: from -50C to +90C
3.Elongation at break: not less than 500%
4.Thermal tolerance: up to +90, short moment up to +130C
5. Electrical resistivity: 1*106 HM
6. Insulating strength (breakdown voltage): not less than 10 kV
SPECIFICATIONS:
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm)_ | (Ω.cm |
J201 | 19mm | 8m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J202 | 19mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J203 | 19mm | 10m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J204 | 24mm | 5m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J205 | 38mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J206 | 50mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J20-1 | 19mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-2 | 38mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-3 | 50mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
Individual package: each roll is packed in a plastic bag, or as clients request can make brand carton box packing.
