- Type:Insulation Tape
- Material:PVC
- Application:High Voltage
- Brand Name:LT
- Model Number:191076
- Rated Voltage:1kv-69kv
- Tensile Strength:150%

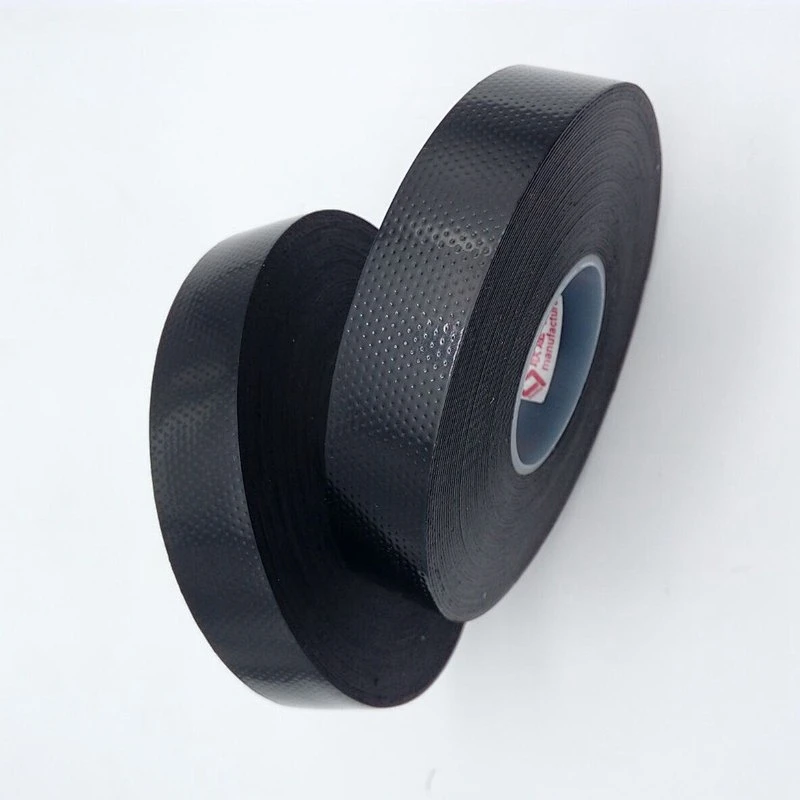

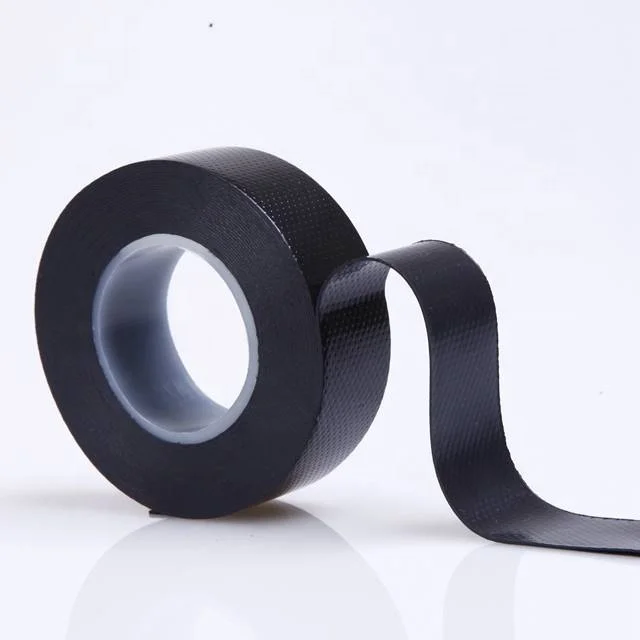

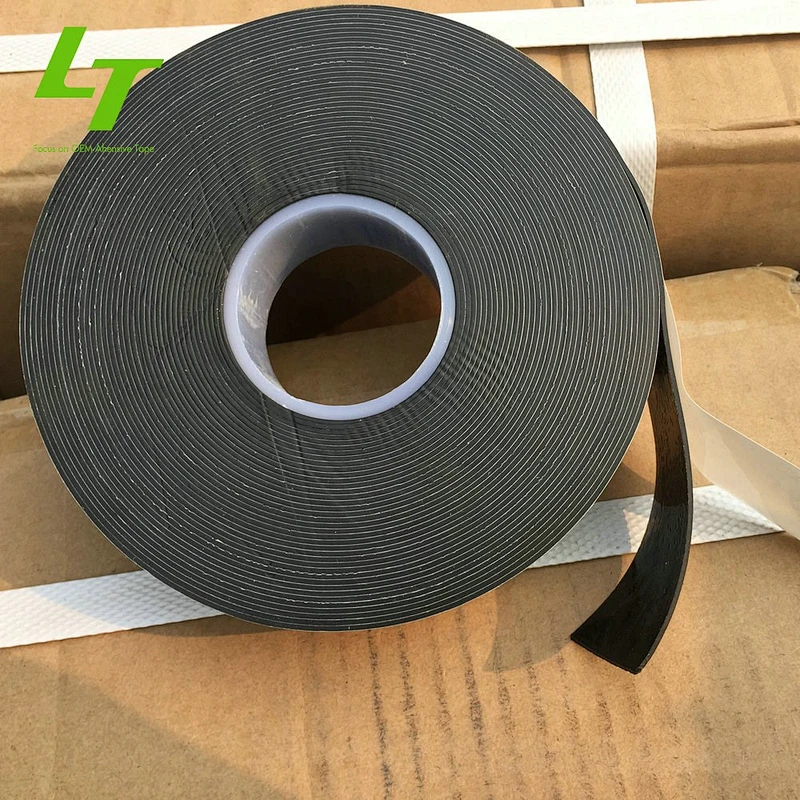

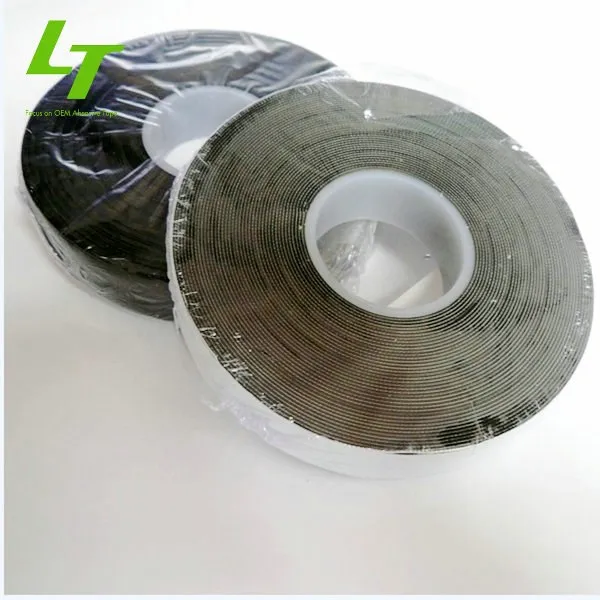

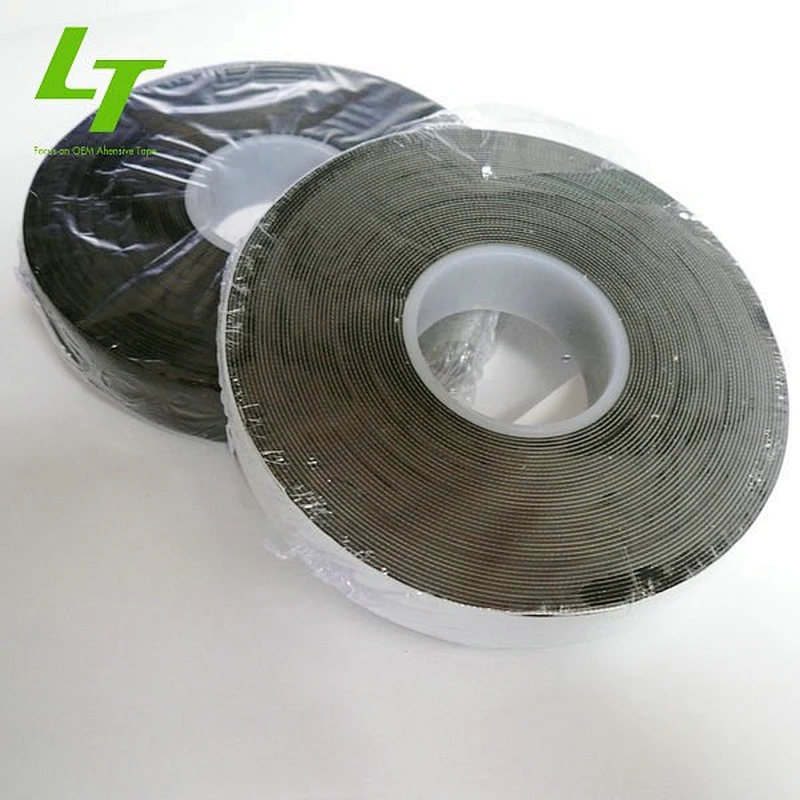

vulcanized elastic neoprene waterproof rubber tape self amalgamating tape
Self FusingTape for Insulating and Protecting Joins and terminations of Cables.
A range of tapes which amalgamate (bond together) when applied under tension as an
insulation wrap.
Material: Ethylene-propylene rubber(EPR)

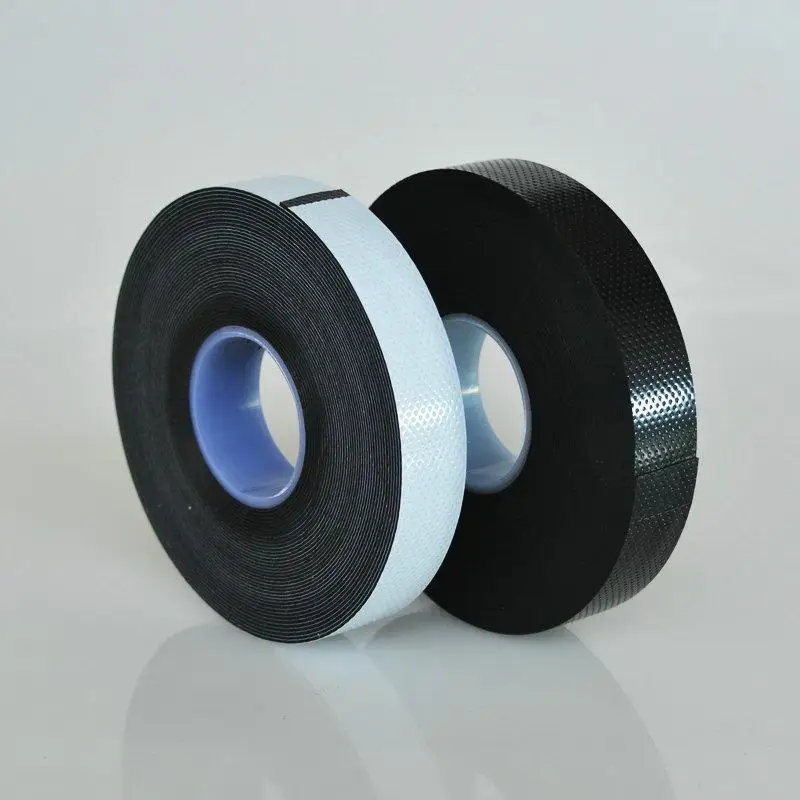

Color:black material,black or white liner
Size:0.76mmx19mmx9.1m(other sizes are OK)
They become a homogeneous, voidfree mass without need for external heat or pressure.
The main applications are for high voltage electrical insulation, moisture proofing and
corrosion prevention for telecommunication and other industrial uses.
The tapes are flexible and versatile in application. They can be easily applied by hand,
contouring closely to irregular shapes and bends to form a permanent insulation layer or
waterproofing barrier.
Specification | width | length | thickness | Tensile strength | Elongation | Disruptive voltage | Volume peceptivity |
Model | (mm) | (m) | (mm) | (Mpa) | (%) | (kv/mm) | Ω.cm |
J201 | 19mm | 8m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J202 | 19mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J203 | 19mm | 10m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J205 | 38mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J206 | 50mm | 9.1m | 0.76mm | 1.5 | 600 | 11KV | 1X1015 |
J20-1 | 19mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-2 | 38mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |
J20-3 | 50mm | 9.1m | 0.50mm | 1.5 | 500 | 10KV | 1X1015 |

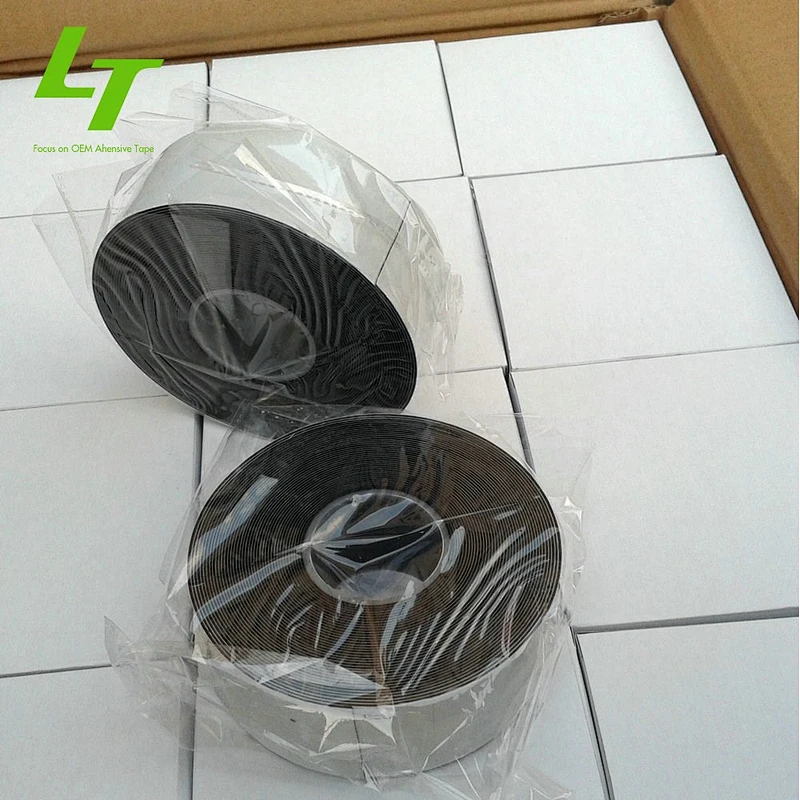

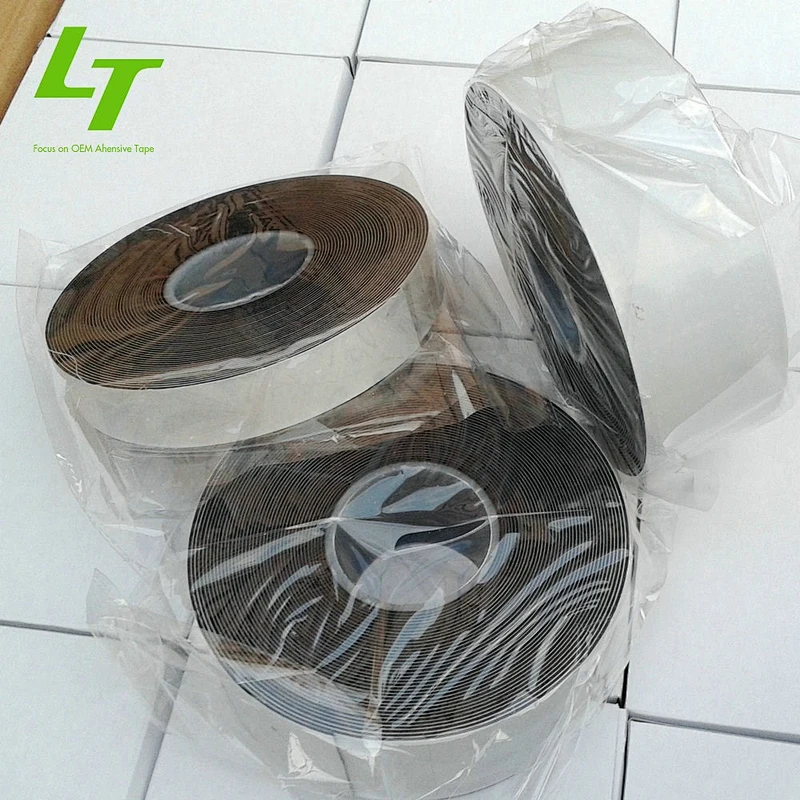

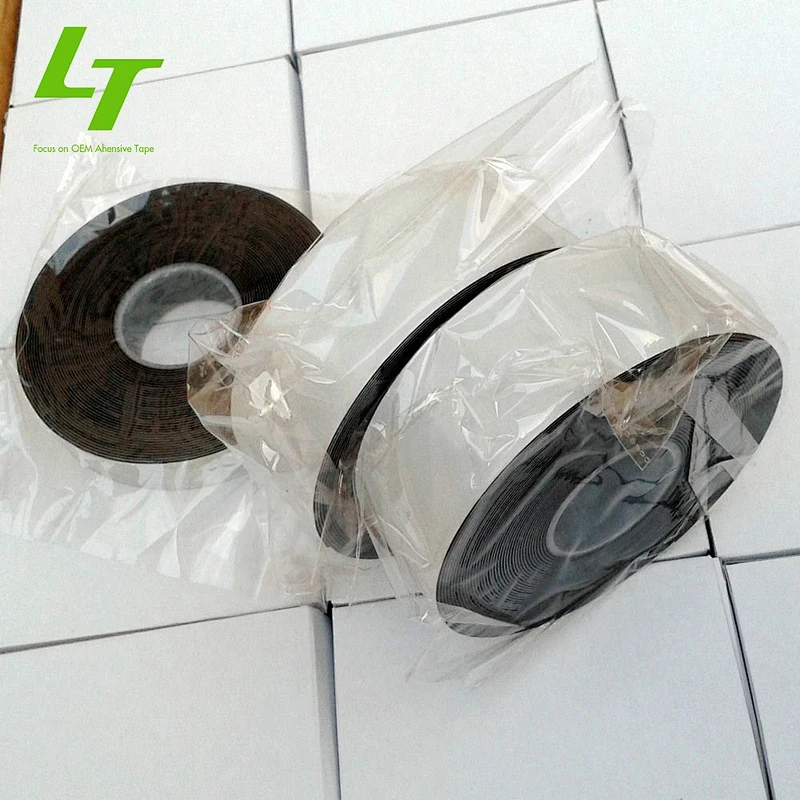

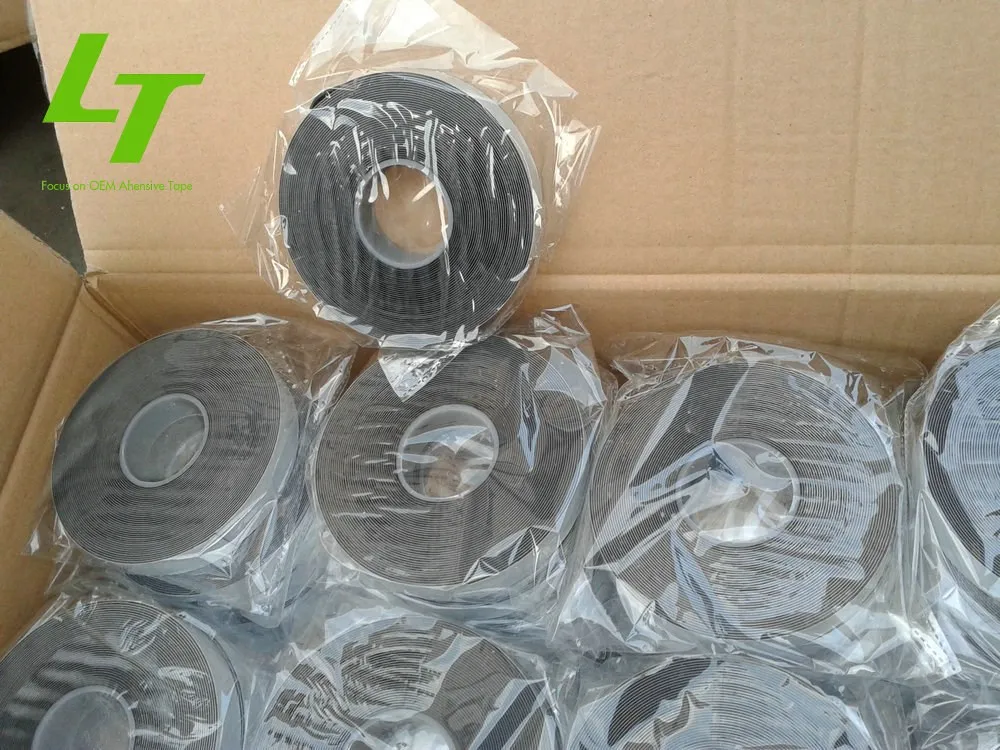

PACKING:Cellophane wrapped,36/60/72/80/100rolls/carton or as your request.
![]DSEN9JPY05G}S0CXH0)}GQ.png](http://sc01.alicdn.com/kf/HTB12ibfa8WD3KVjSZKP761p7FXaW/201691297/HTB12ibfa8WD3KVjSZKP761p7FXaW.png)
How to use?
1. Clean adequately the surface of the object
2. Stretching it about twice the length with the adhesive side inside
3. Wind the tape half-lapped without getting wrinkled
4. Take care not to stretch it too tightly at the end of lapping
5. Cut the tape using scissors or knife, then press it enough
6.Where tape may be subject to abrasion or exposure to weather an external covering
with a high quality PVC tape is recommended.
Welcome your kindly inquiry.
