china electrical products yellow and green pvc electrical tape for Vietnam

china electrical products yellow and green pvc electrical tape for Vietnam

Model NO.: liantuL2187
Price:: USD 0.10-0.30 / roll
Delivery: FOB
Minimum order quantity: 1 roll
Supply Ability: 300000 roll / Week
Country of Origin: TianJin

Quantity:

Product Description

Place of Origin:CN;HEB
Brand Name:liantu
Material:PVC
Rated Voltage:600v
Application:HIGH Voltage
Type:Insulation Tape
Tensile Strength:160%
Model Number:liantuL2187
OEM:acceptable
name:pvc electrical tape
material:pvc+rubber
Temperature:80°C
color:red,black,yellow,green,blue,etc
Application:high voltage
width:15mm
length:11m
thickness:0.18mm
Adhesive Type:pressure sensitive

china electrical products yellow and green pvc electrical tape for Vietnam

http://cnliantu.en.alibaba.com/

Product Description

shijiazhuang liantu electric company is the top 10manufacture of adhesive tapes

PVC Electrical Tape General Used

Material

soft pvc film with matte/gloss finish.

surface coated with rubber pressure-sensitive adhesive.

Feature

1.Flexibility with strong retractility.

2.Strong tensile strength.

3.High voltage,moisture resistance.

4.Flame retardant.

5.Weather-resistance.

6.excellent viscosity.

7.Easy to wrap and mould around uneven surfaces.

Specifications

Property	Value	Unit	Test Method
Total thickness	0.13	mm	ASTM-D-1000
Tensile strength	20	N/cm	ASTM-D-1000
Elongation at break	200	%	ASTM-D-1000
to steel	1.5	N/cm	ASTM-D-1000
to backing	1.5	N/cm	ASTM-D-1000
voltage resistance	600	V	UL510
Temperature Resistance	80	℃	ASTM-D-1000
Date in table represent average test results are not be used for specification purposes.

Standard Sizes And Packing

Width	length	Core	Packing	Color
19mm	10m	38mm	500rolls/ctn	colorful
19mm	20m	38mm	250rolls/ctn	colorful
other size and cores are available customization

Advantage

Excellent viscosity and flexibility, withstand voltage, burn-resistance, cold-resistance, high-tensile, suitable for insulative wrapping wire, cable and automobile line bunch.

Recommended Uses

Electric insulation below 600V

Insulating wrapping of electric wires and cables

Marking of electric wires and cables

Can be used indoor and outdoor

OEM is welcome

We can make your request brand logo embossed on the film, printed inner the paper core, make a paper label, or make logo on the cellophane then wrap the tape, colored logo printed box packing

FR GRADE or Non FR grade as request.

Product Show

PVC electrical tape(non flame retardant, flame retardant )

Grade:A/B

Application

This tape suitable for wire winding,transformers,motors,capacitor,voltage regulator and other kinds of motors,electrical components of the insulationof the fixed.

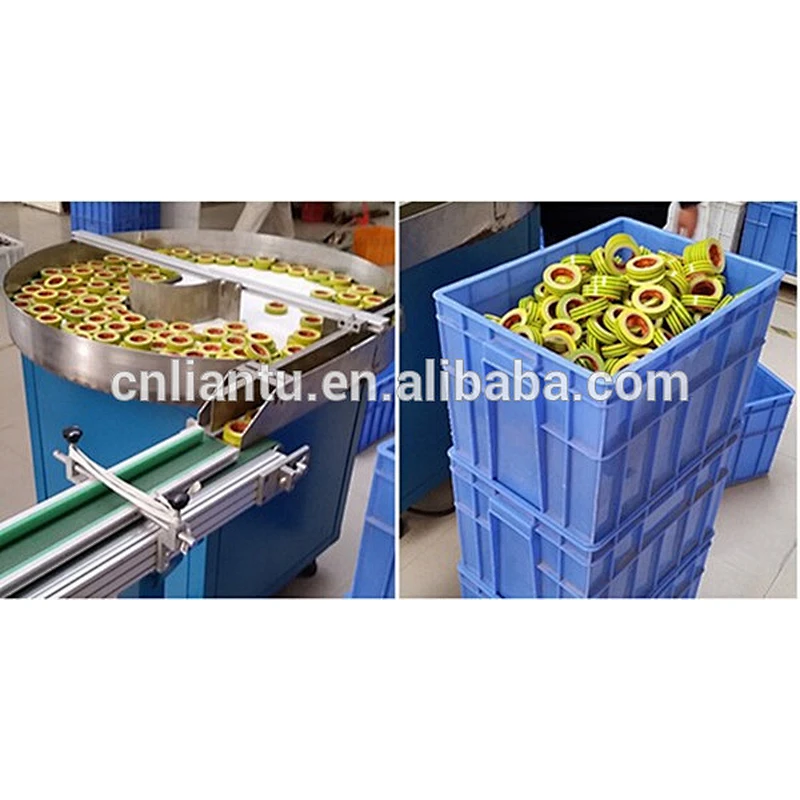

Production

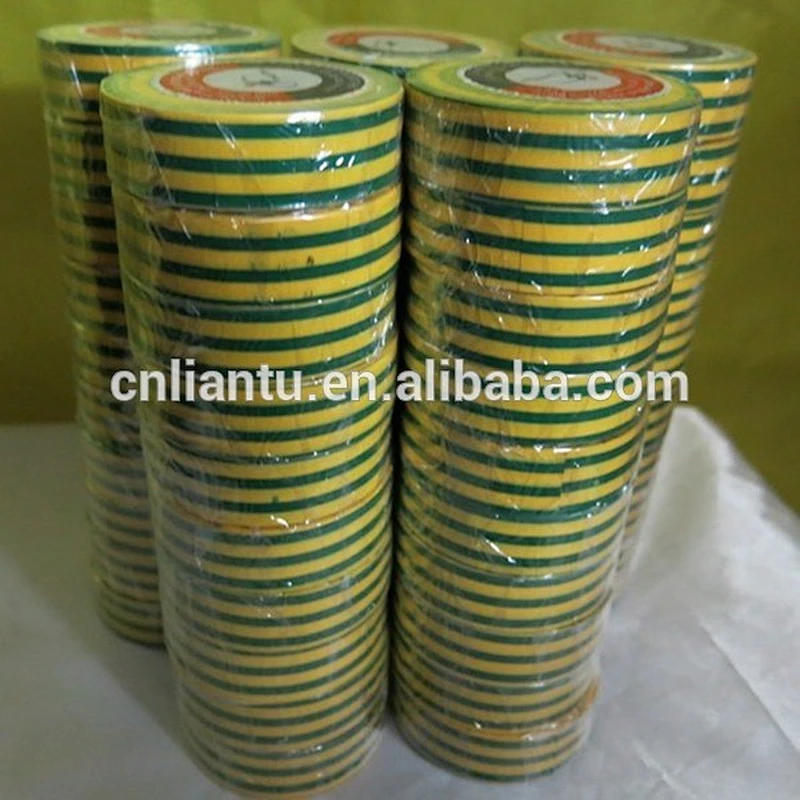

Packaging & Shipping

Packaging Detail: neutral packing,or as your requirement.

packing as request:

For example size: 0.18mmx15mmx11m

General package: each roll a wrap by a cellophane ed with a paper label, 10 rolls a shrink, then 200rolls a cartons

Or each roll a shrink with a paper label

Or each roll a shrink with your brand logo printed on the cellophane.

Or each roll a plastic bag then pack with a colored logo printed box, then 180rolls/carton

Or no paper label pack with 10rolls/shrink PVC Insulation Insulating Tape

Paper core

General : blank paper core Thickness with 2mm,3mm or 4mm

Or : paper core print your logo with 1/2/3 colors printed.

Or as your request

Delivery detail: 25-30days(after payment).

Our Services

Why Us

1.Our factory establish in 1990,we started foreign trade
many years,have fully experience can help you import the goods freely.
2.OEM order is welcome.
3.Our quality stably good,materials price keep stably too
let us can offer you constantly for longtime.
4.Delivery in time
5.Brand logo and packing can be made according to your request.
6.24hours online,service for you at any time.

We are in uncompromising and continuous pursuit of high quality and customers' 100% satisfaction.

Payment
