- Place of Origin:CN;HEB
- Brand Name:liantu
- Material:PVC
- Rated Voltage:600v
- Application:HIGH Voltage
- Type:Insulation Tape
- Tensile Strength:160%
- Model Number:liantuL2006
- Brand:OEM acceptable
- material:pvc+rubber
- Temperature:80°C
- Application:high voltage
- color:black,yellow,green,red,blue,etc
- width:18mm
- length:20m
- thickness:0.15mm
- Adhesive Type:pressure sensitive
- name:adhesive tape

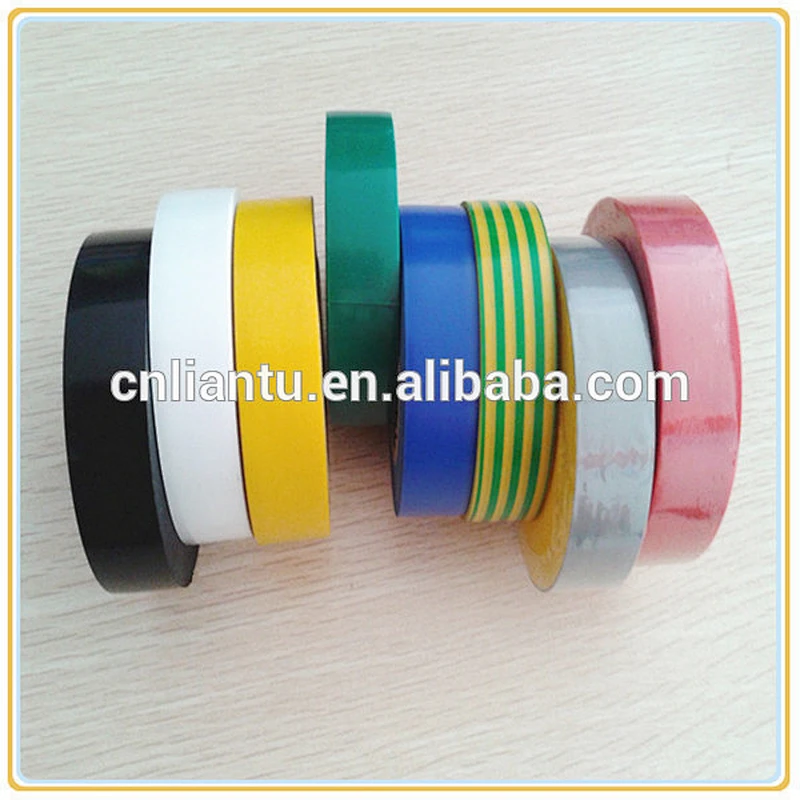

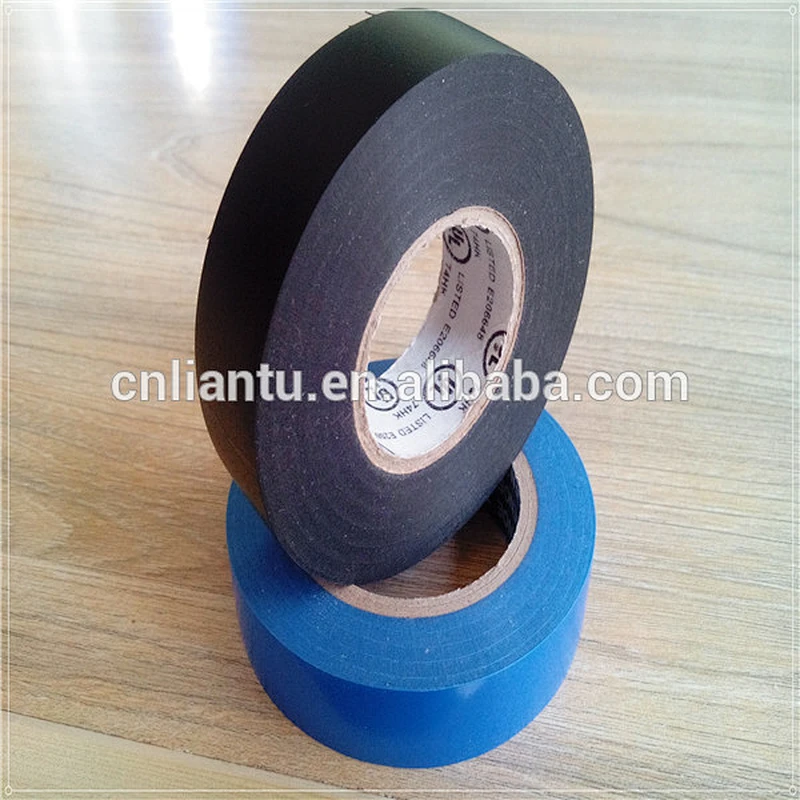

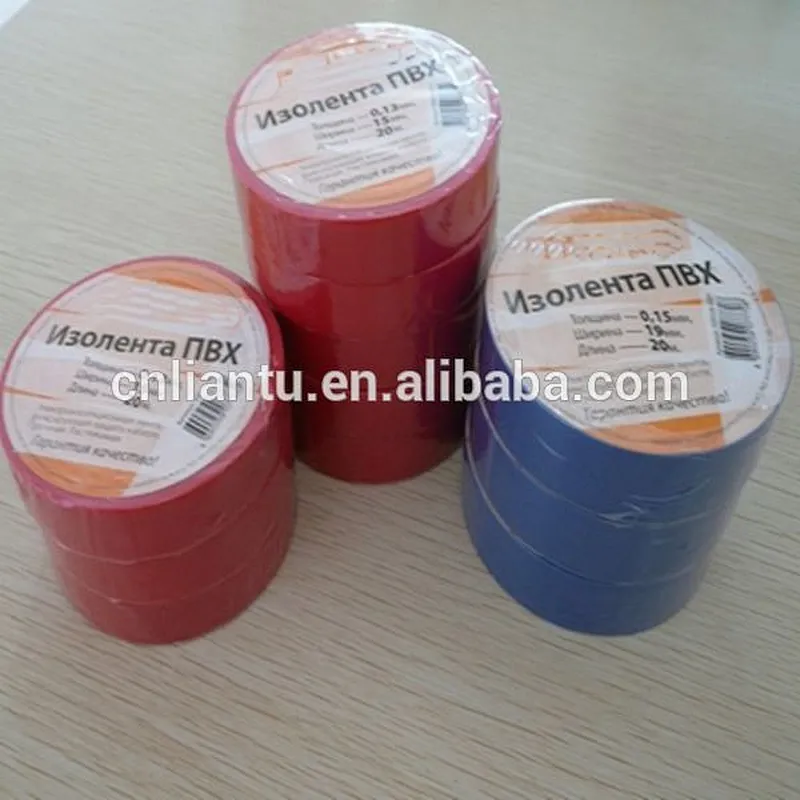

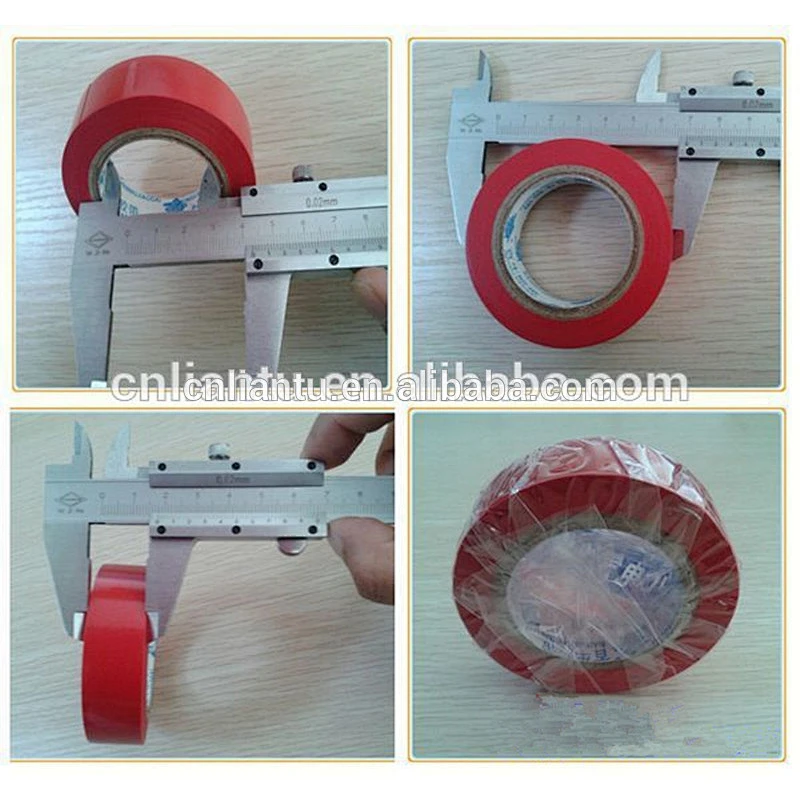

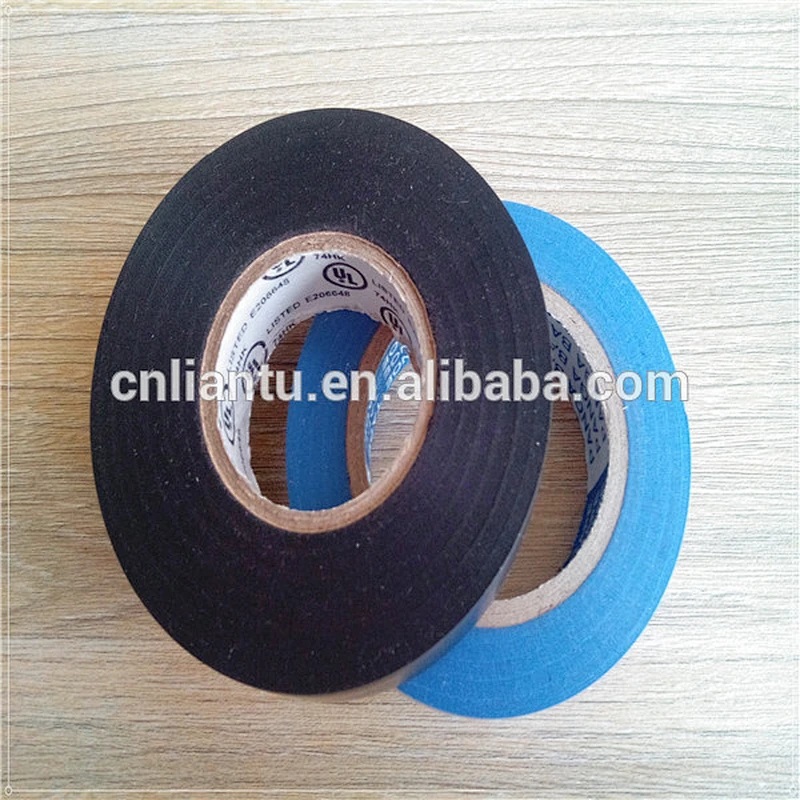

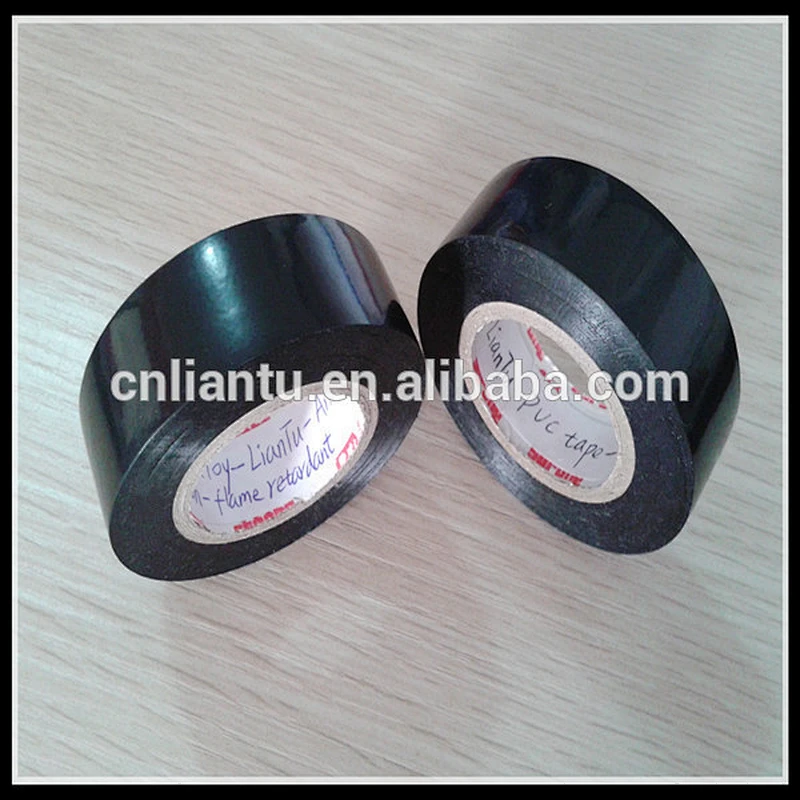

pvc electrical adhesive tape use for all kinds of electrical materials
PVC Electrical Tape General Used
Material
soft pvc film with matte/gloss finish.
surface coated with rubber pressure-sensitive adhesive.
Feature
1.Flexibility with strong retractility.
2.Strong tensile strength.
3.High voltage,moisture resistance.
4.Flame retardant.
5.Weather-resistance.
6.excellent viscosity.
7.Easy to wrap and mould around uneven surfaces.
Specifications
| Property | Value | Unit | Test Method |
| Total thickness | 0.13 | mm | ASTM-D-1000 |
| Tensile strength | 20 | N/cm | ASTM-D-1000 |
| Elongation at break | 200 | % | ASTM-D-1000 |
| to steel | 1.5 | N/cm | ASTM-D-1000 |
| to backing | 1.5 | N/cm | ASTM-D-1000 |
| voltage resistance | 600 | V | UL510 |
| Temperature Resistance | 80 | ℃ | ASTM-D-1000 |
| Date in table represent average test results are not be used for specification purposes. | |||
Standard Sizes And Packing
| Width | length | Core | Packing | Color |
| 19mm | 10m | 38mm | 500rolls/ctn | colorful |
| 19mm | 20m | 38mm | 250rolls/ctn | colorful |
| other size and cores are available customization | ||||
Advantage
Excellent viscosity and flexibility, withstand voltage, burn-resistance, cold-resistance, high-tensile, suitable for insulative wrapping wire, cable and automobile line bunch.
Recommended Uses
Electric insulation below 600V
Insulating wrapping of electric wires and cables
Marking of electric wires and cables
Can be used indoor and outdoor
Product Show
PVC electrical tape(non flame retardant, flame retardant )
Grade:A/B
pvc electrical insulation tape
Application
This tape suitable for wire winding,transformers,motors,capacitor,voltage regulator and other kinds of motors,electrical components of the insulationof the fixed.
Packaging Detail: neutral packing,or as your requirement.
Delivery detail: 25-30days(after payment).
