- size:0.13mm*19mm*20m
- adhesive:rubber sensitive glue
- finished:jumbo roll or cutting roll
- core:38mm+4mm paper core
- width:15-1250mm(useable)
- color:black, white, red, yellow, green, blue, brown
- Material:PVC
- Rated Voltage:6.5kv
- Application:High Voltage
- Type:Insulation Tape
- Type:Insulation Tape
- Material:PVC
- Application:HIGH Voltage
- Place of Origin:CN;HEB
- Brand Name:LETO
- Model Number:LETO01
- Rated Voltage:6.5KV
- Tensile Strength:160%

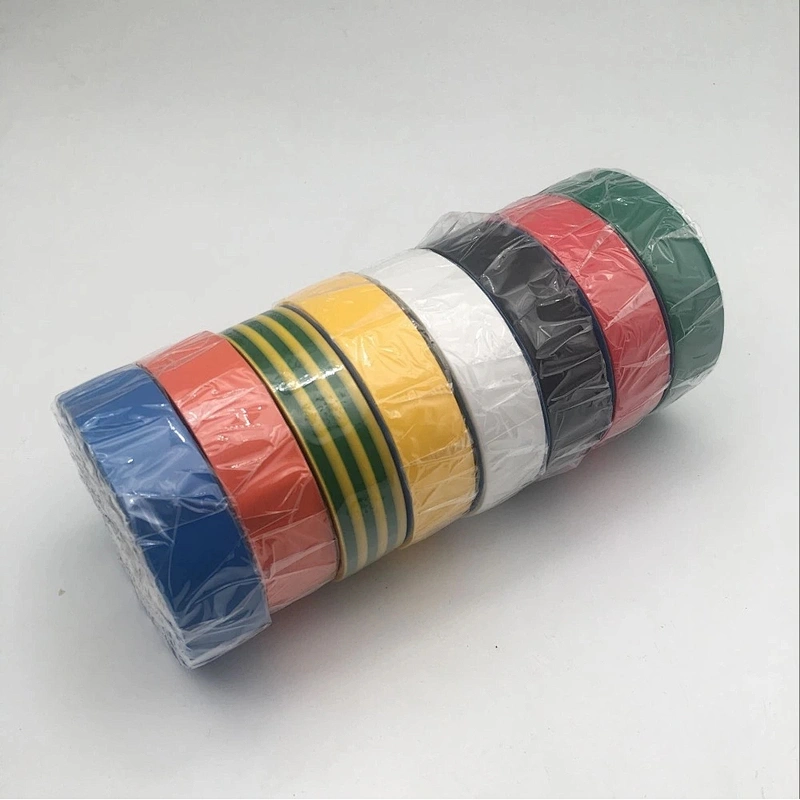

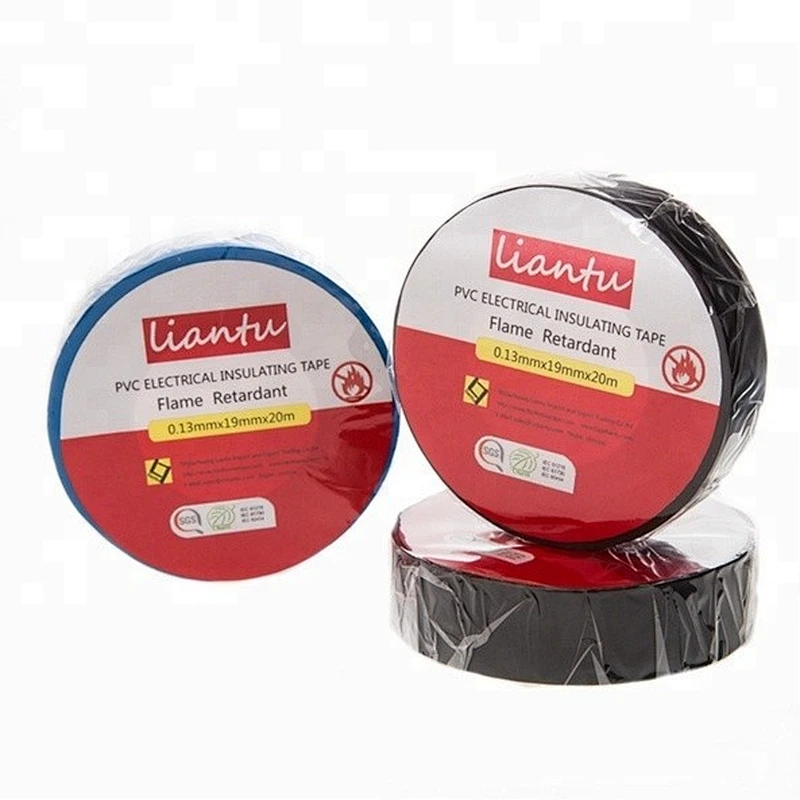

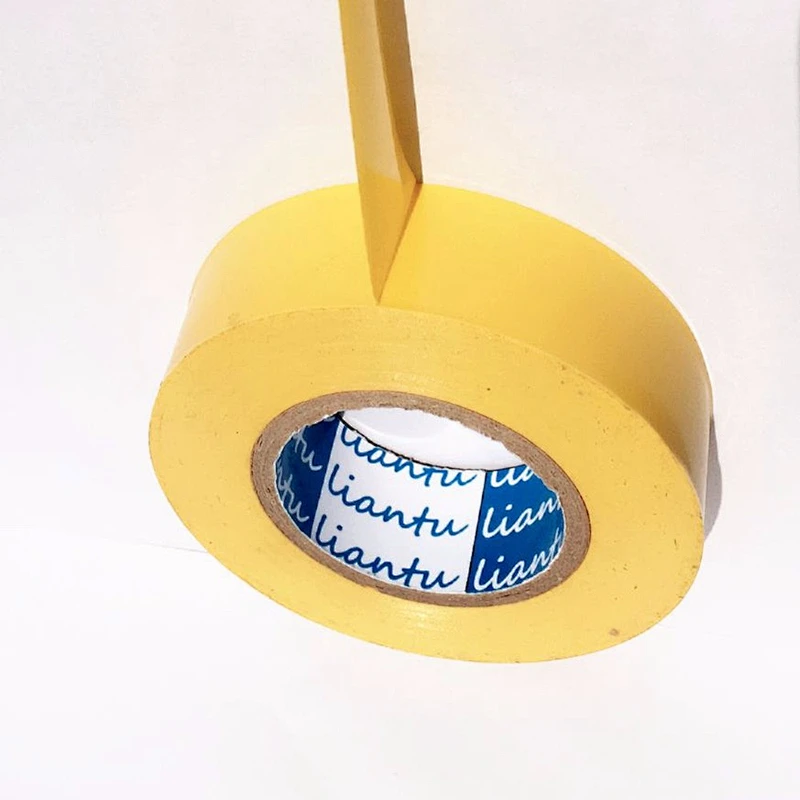

Best quality Liantu PVC electrical insulation tape free shipping
Shijiazhuang Liantu have been in adhesive tape market for 7 years. Our Mian products includes PVC electrical tape; PVC pipe wrapping tape; BOPP packing tape;silicone self amalgamating tape; Floor marking tape; Cloth insulation tape.
PVC Electrical Insulation Tape
(Flame Retardant Insulation Tape and Non Flame Retardant Insulation Tape)
PVC electrical tape is made from polyvinyl chlorade as backing material, and coated with rubber pressure-sensitive adhesive. Excellent insulation, good viscosity, withstand voltage, high-tensile, burn-resistance, cold-resistance etc. It's suitable for automotive wiring, wire/cable wrapped, insulation protection, etc.
Specification:
Backing material: PVC
Adhesive: Rubber pressure-sensitive adhesive
Colors: black, white, red, green, yellow, etc.
Thickness | Width | Length | Color | Grade |
0.10-0.20mm | 12-1250mm | 4-50m | black/colored | A/B |
Features:
Peel Strength | 1.6N/m |
Tensile Strength | 16-28N/cm |
Elongation | 180% |
Rated Voltage | 6.5-8.0KV |
Advantage:
• Excellent insulation property, strong restoring force, good flame retardant capacity, withstand voltage, significant adhesiveness, weatherproof.
• Self-adhesive,acid-resistant,alkali-resistant and anti-aging.
• Stable through the seasons.
Usage:
• PVC electrical tape is widely used for enlacing auto harness, wrapping electric wire/cable, and insulation protection.
• It is the main insulation material of automobile and household electrical apparatus.
• Wire and cable insulation, colour coding of electrical cables, loom harnessing, stopping off in plating, prevention of electrolytic corrosion, packaging applications, drum and tube sealing.
Packing:

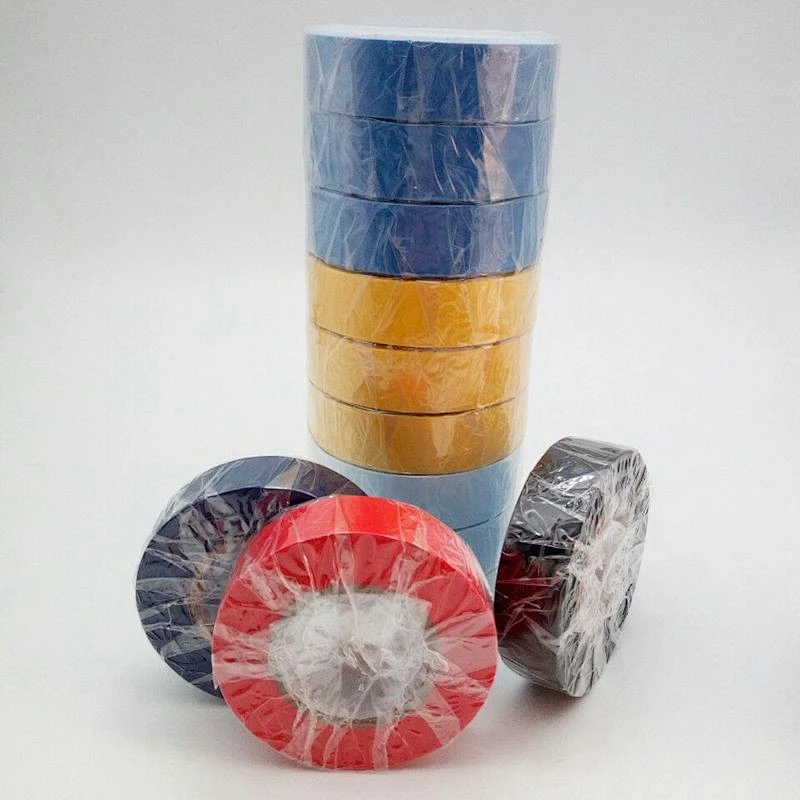

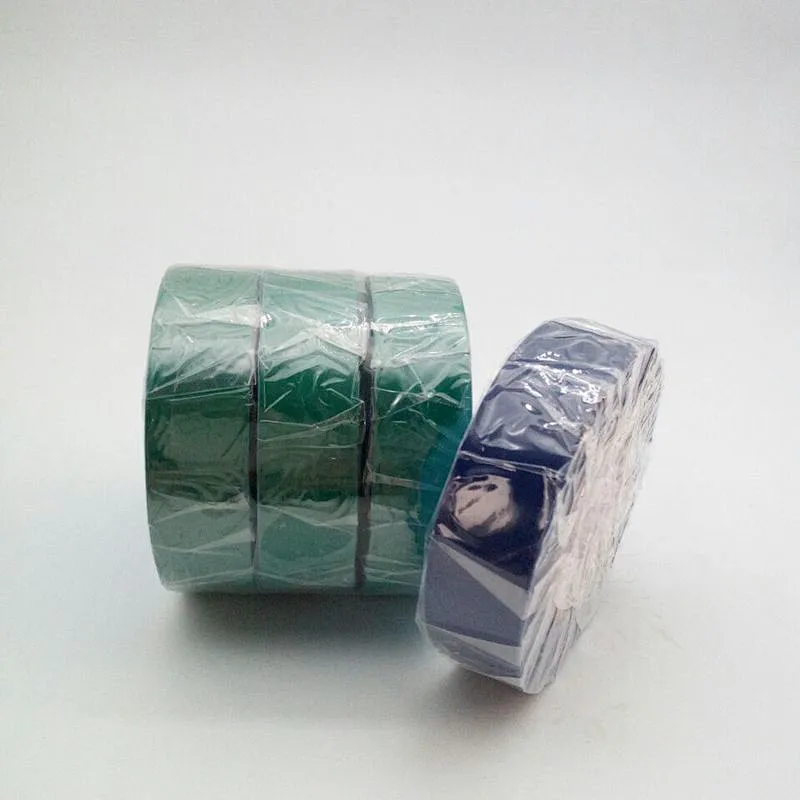

• each roll wrapped individually, for small roll, 10 rolls a bunch, 200-500 rolls in a carton; for big rolls, 2-10rolls a carton.
• Or as customer's requirement
![4G3GI]8PMY7G_A~P$]LDWFI](http://sc01.alicdn.com/kf/HTB11XlQGVXXXXa4XXXXq6xXFXXXj/201691297/HTB11XlQGVXXXXa4XXXXq6xXFXXXj.jpg)
• OEM is available, as professional manufacturer, we can produce according to the customers' sample or requirement.
• All the packings are free of charge, based on at least one 20'ft, including paper label, paper core and carton design.
• We offer free samples, with shipping and taxes paid by the buyer.
ape for degaussing coil wrapping
