- Place of Origin:China
- Type:Insulation Tape
- Material:PVC
- Application:High Voltage
- Brand Name:Liantu
- Rated Voltage:600v
- Tensile Strength:20N/cm
APPLICATIONS:

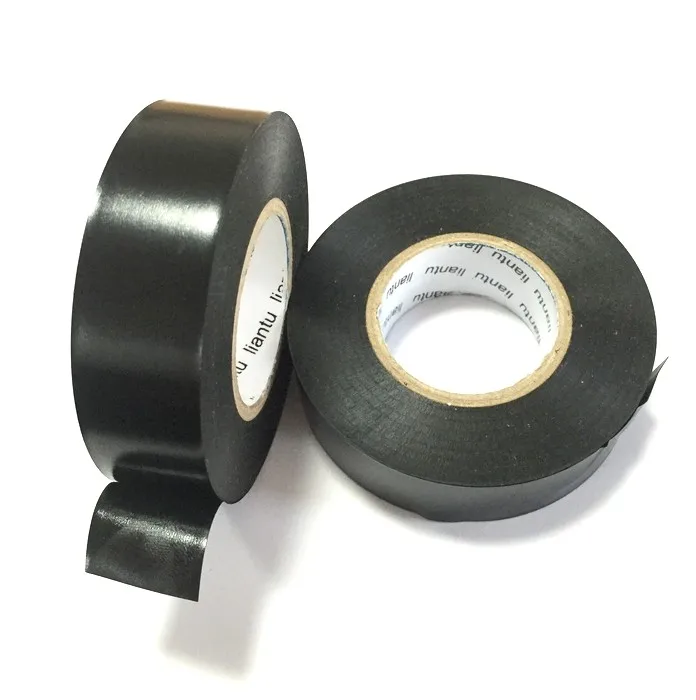

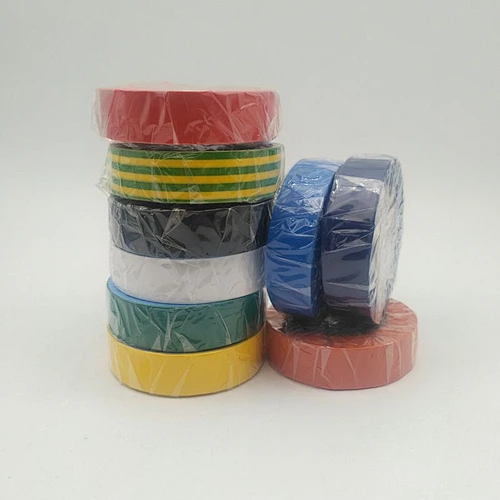

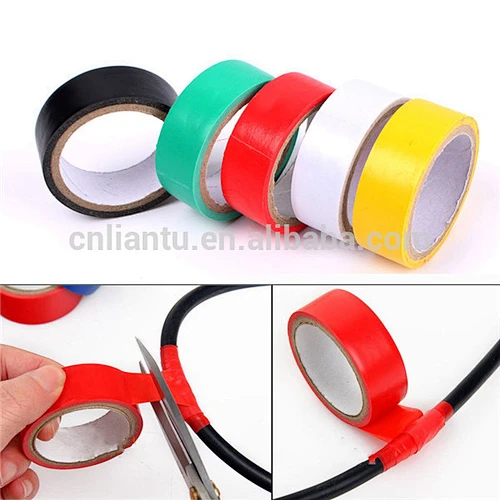

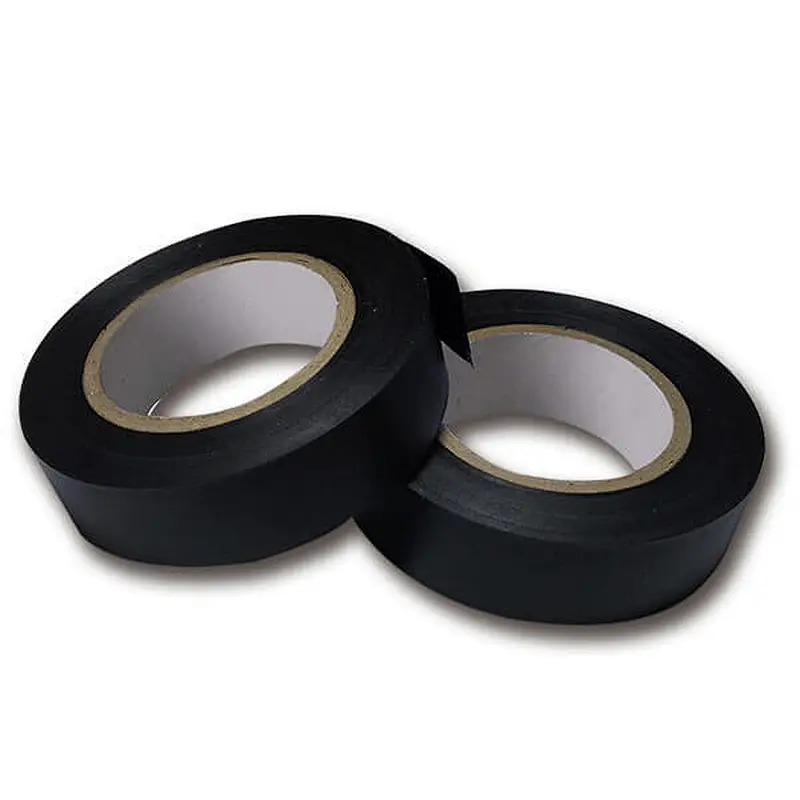

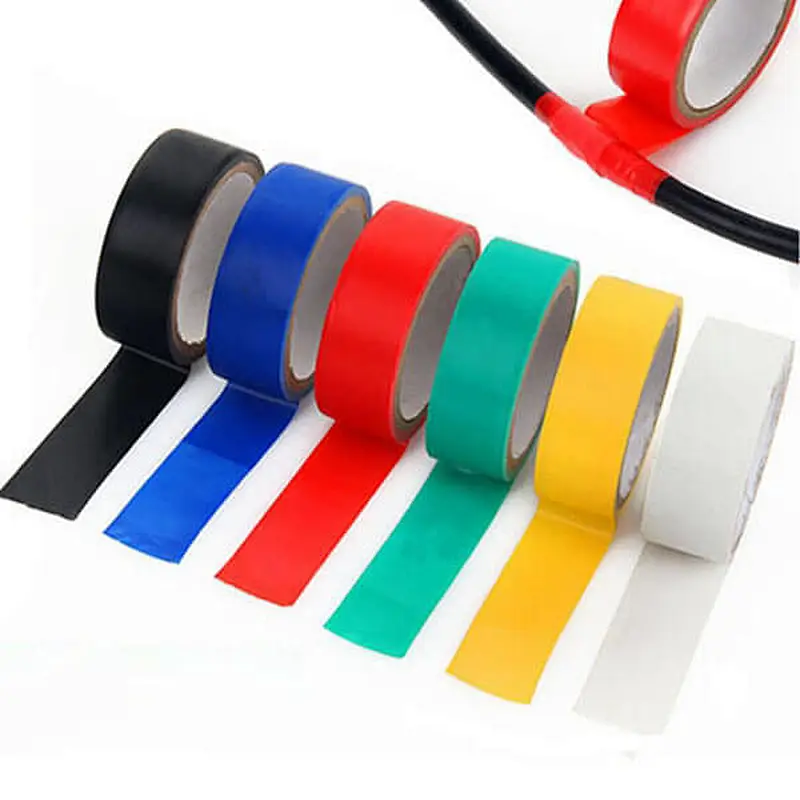

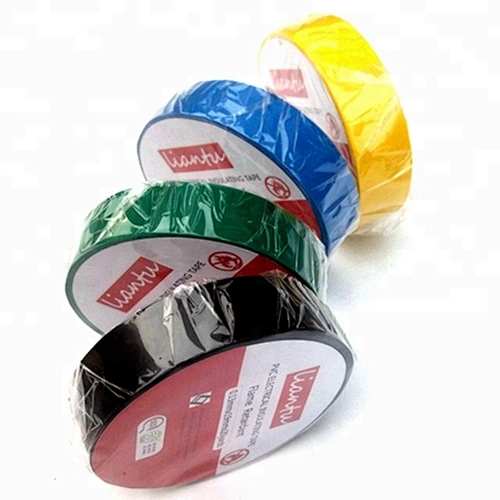

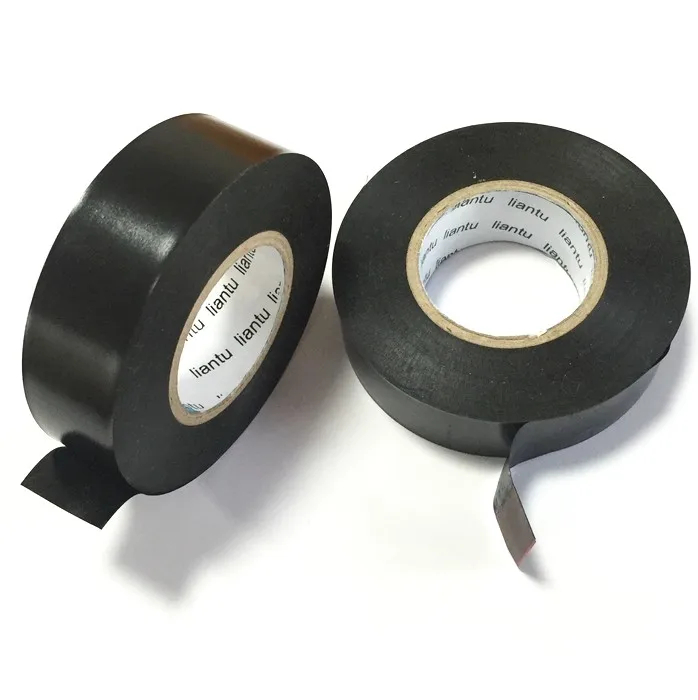

The PVC electrical insulating tape is a polyvinylchloride film manufactured from PVC made in a roller calendering way with the adhesive layer on one side, and cut on strips of the certain width. It is used in everyday household activities and as an insulation material during electrical works.
Composition:
PVC film
Adhesive layer on rubber base
Special Features:
- Total thickness:0.13mm
- Thickness of adhesive coat:0.12-0.15mm
- Adhesion: ≥1.5N/cm
- Tensile strength: ≥17 N/cm
- Elongation: ≥160%
- Voltage broken down: 8.0kv/mm
- Working temperature range: from -10 to +80
- Used for wrapping electrical wires and cables for insulation protective
Physical Parameter :
Properties | Unit | Specification | ||||
110D | 130D | 150D | 165D | 180D | ||
Total Thickness | mm | 0.11 | 0.13 | 0.15 | 0.165 | 0.18 |
Width | mm | 19 | 19 | 19 | 19 | 19 |
Tensile Strength | N/cm | 15 | 17 | 20 | 22 | 26 |
Elongation | % | 160 | 160 | 180 | 180 | 180 |
Voltage breakdown | V | 650 | 650 | 650 | 650 | 650 |
Temperature Resistance | °C | 80 | 80 | 80 | 80 | 80 |
CHOOSE US AS YOUR GOOD COOPERATION PARTNER
WE OFFER QUALITY AND PRICE sustained and stablely

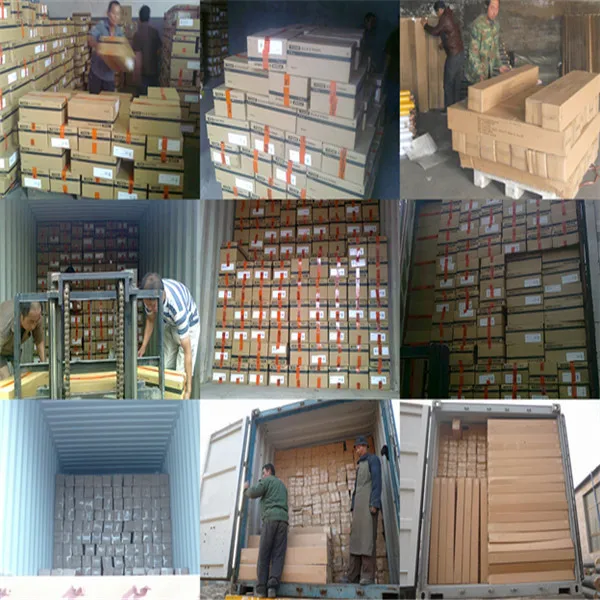

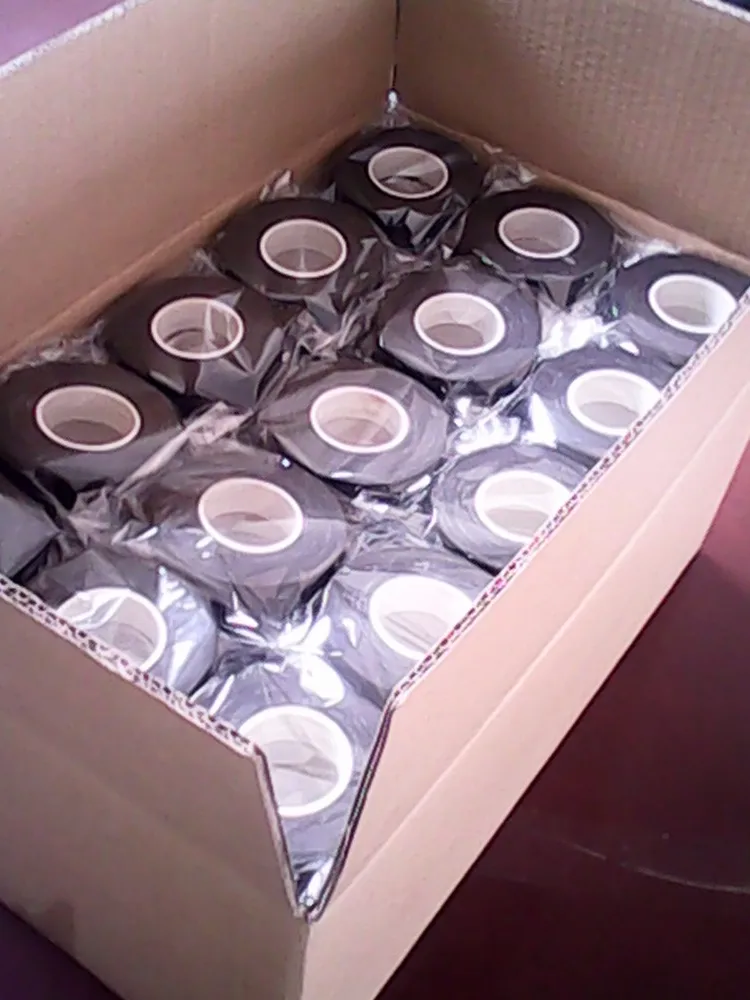

Packaging & Shipping
