- Place of Origin:China
- Type:Insulation Tape
- Material:PVC
- Application:High Voltage
- Brand Name:Liantu
- Rated Voltage:600v
- Tensile Strength:20N/cm

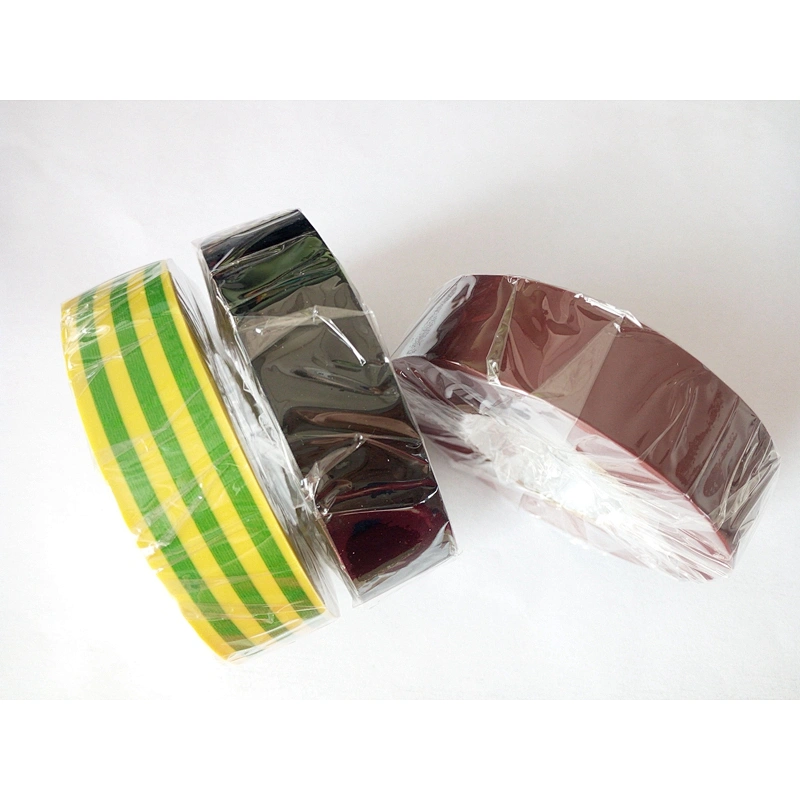

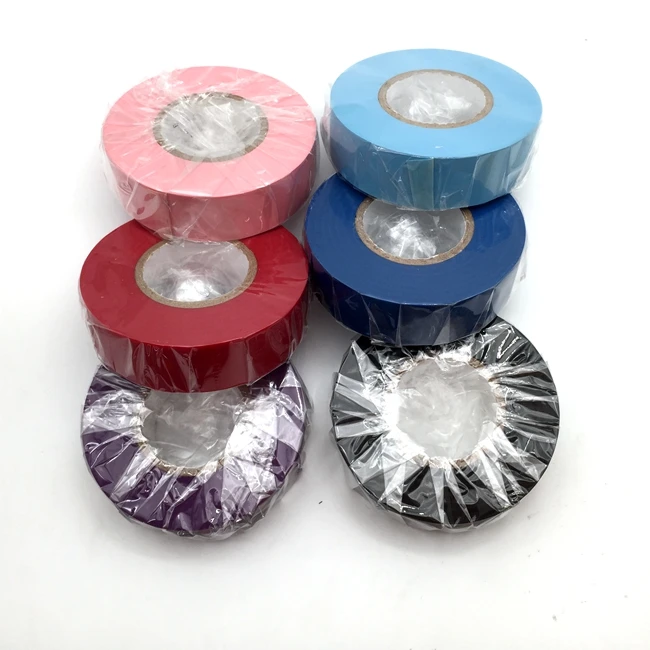

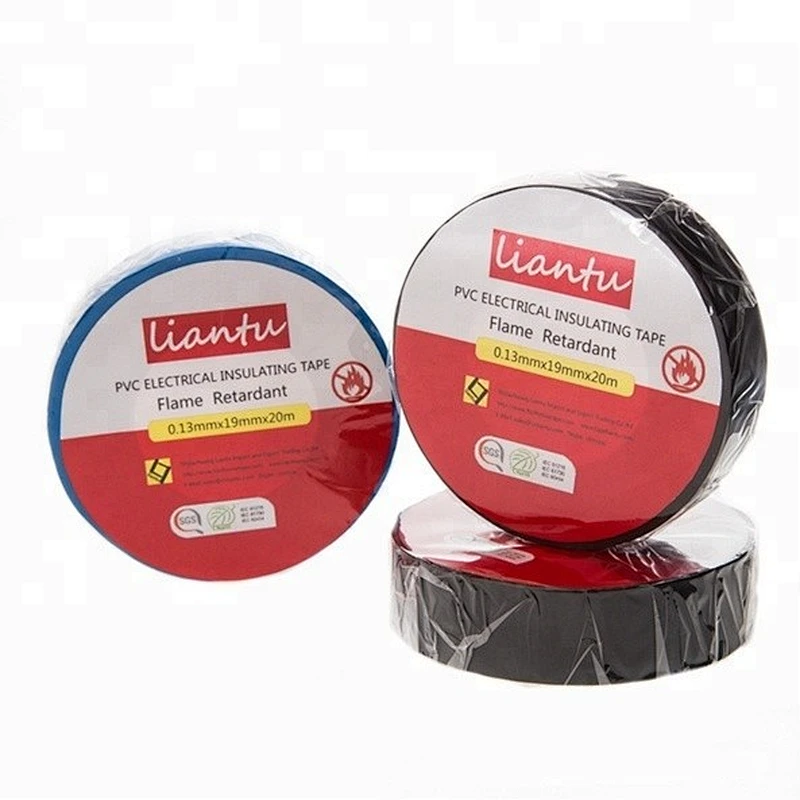

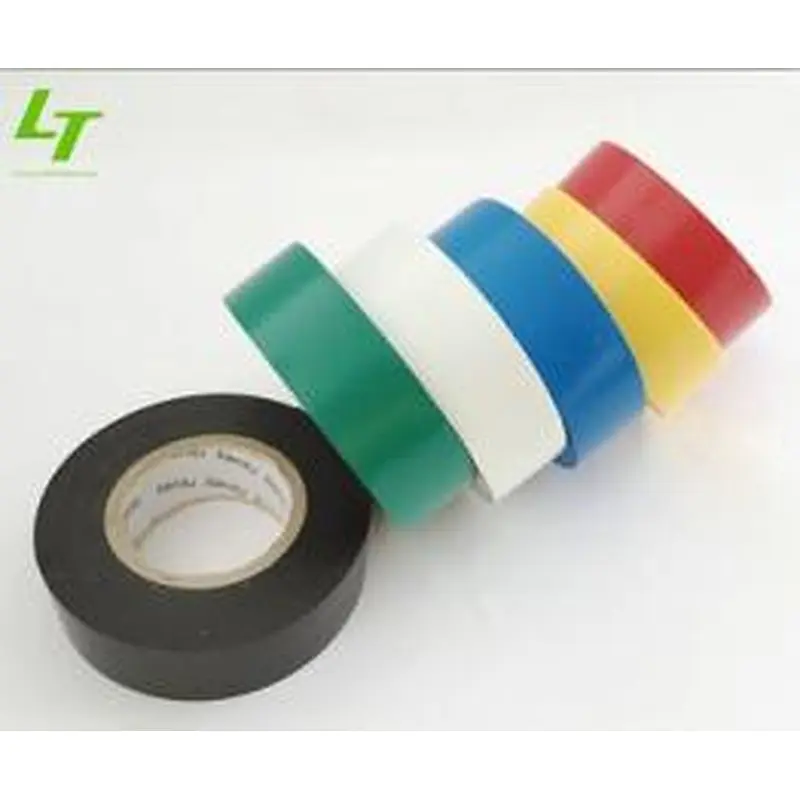

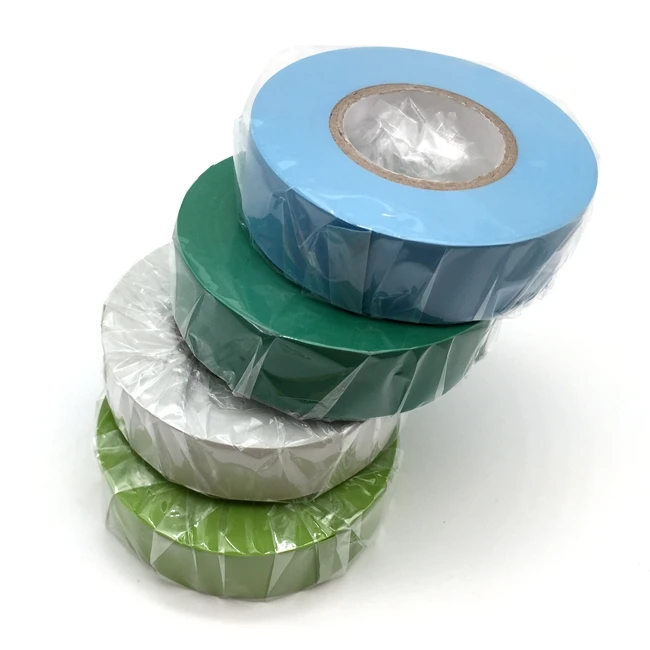

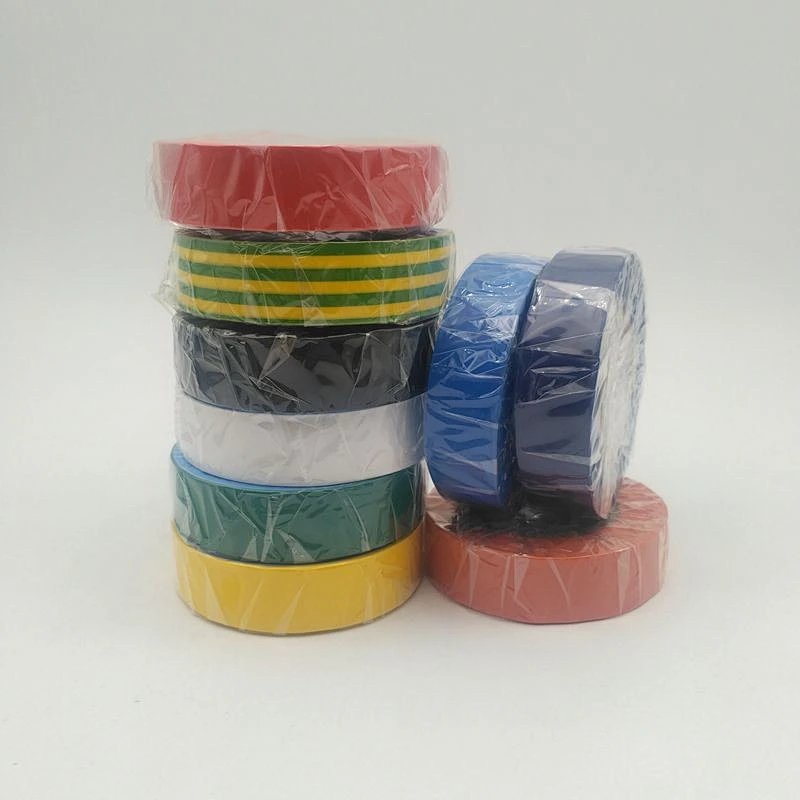

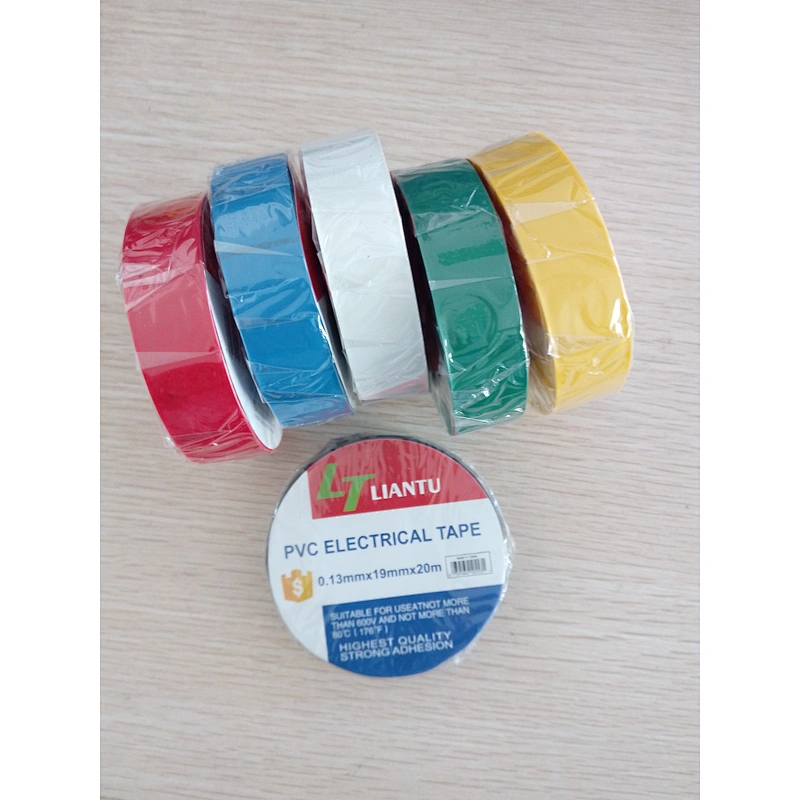

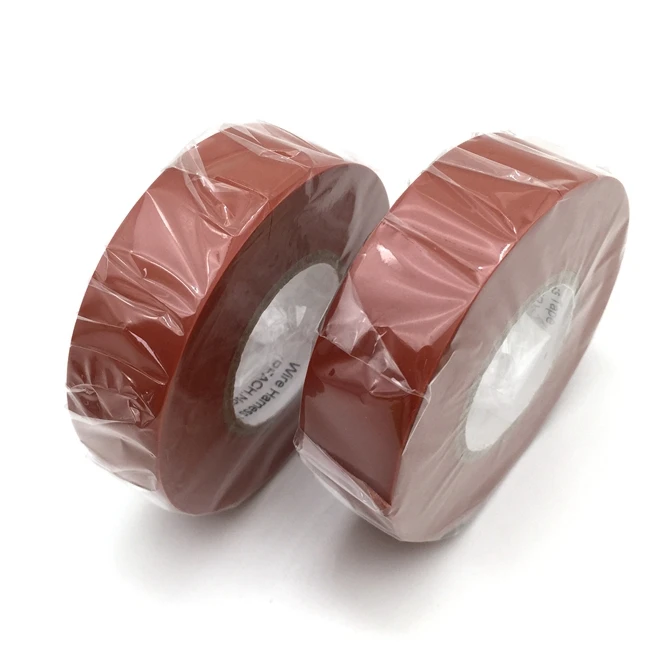

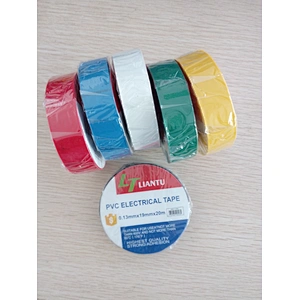

Product Description
A thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics . It is suitable for continuous use at 80℃ with good electric flammability and soft property , not influenced by most chemical substances and humidity . it complies with ROHS requirement .
Advantages:
1 high adhesion
2 stable against rotting
3 high tear resistance and stability
4 extremely soft surface
5 high abrasion resistance
6 flexible and easy to handle
Technical Data
Technical Data sheet | |||
Property | Unit | Data | Test Method |
Total thickness | mm | 0.13 | ASTM D1000 |
Tensile strength | N/cm | 16 | ASTM D1000 |
Elongation | % | 150 | ASTM D1000 |
Adhesion strength |
|
|
|
to steel sheet | N/cm | 1.2 | ASTM D1000 |
to backing | N/cm | 1.0 | ASTM D1000 |
Rated Voltage | V | 600 | UL510 |
Temperature-resistant Grade | °C | 80 | ASTM D1000 |
Heavy metals content |
|
|
|
Lead, Cd content | ppm | 30 | US EPA3052 |
Hg,CrVi content | ppm | 10 | US EPA3060A |
PBB, PBDE content | ppm | 10 | US EPA3540C |
