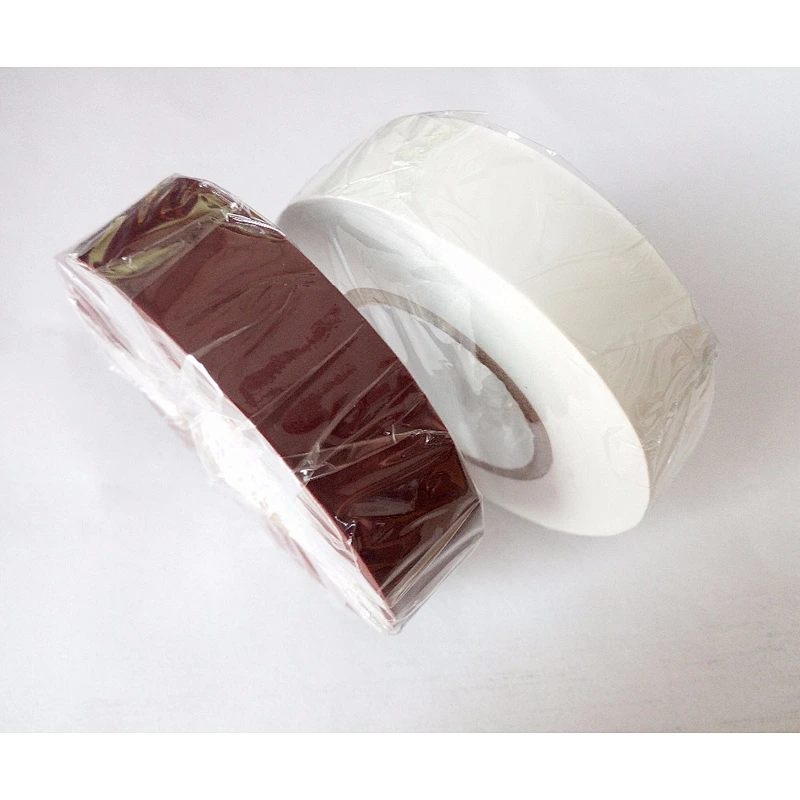

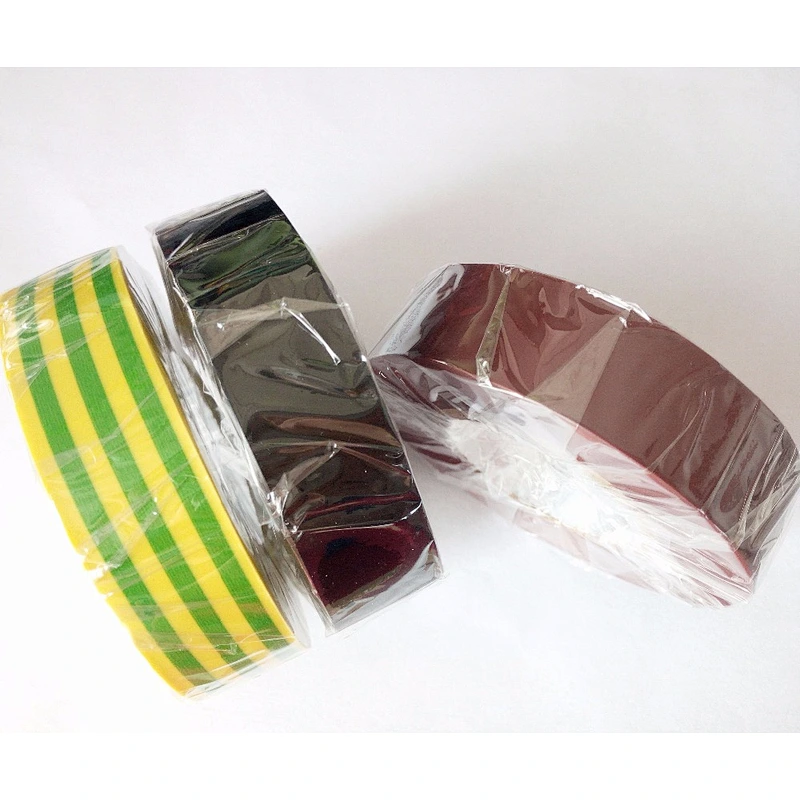

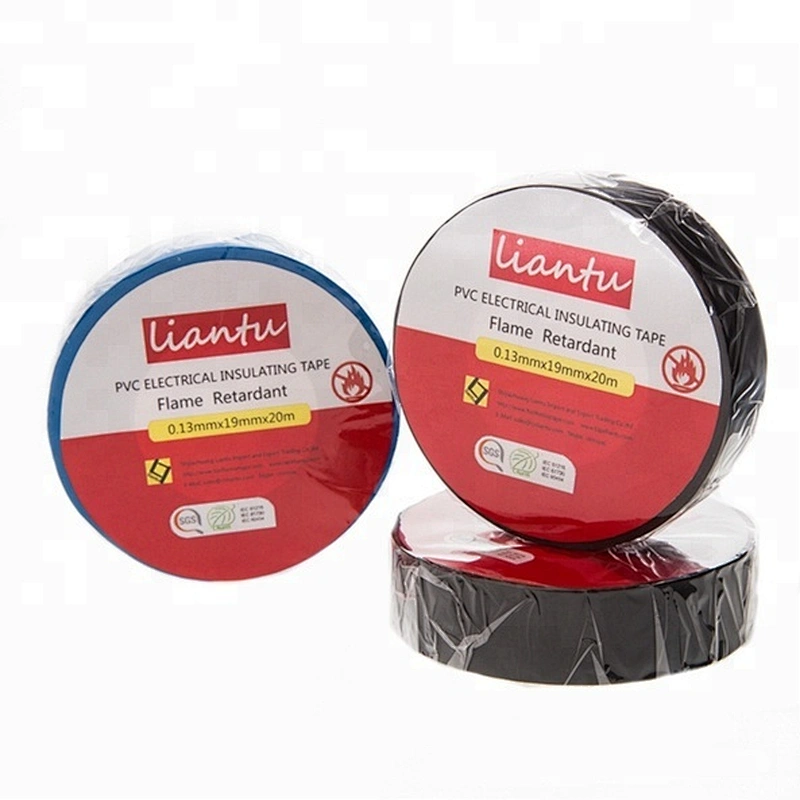

Strong adhesion PVC electrical flame retardent insulation tape

Strong adhesion PVC electrical flame retardent insulation tape

Price:: USD 0.23-0.23 / rolls
Delivery: FOB
Minimum order quantity: 30000 rolls
Supply Ability: 100000.0 rolls / Week
Country of Origin: Tianjin port

Quantity:

Product Description

Product name:PVC electrical tape flame retardant strong adhesion insulation
Feature:Electrical Performence
Thickness:0.1~0.2
Width:15mm, 18mm, 19mm
Length:10m, 20m
Color:Customized
Elongation at break:200%
Usage:Insulation Protection
Sample:Sample Avaliable
Adhesive:Rubber
Type:Insulation Tape
Material:PVC
Application:HIGH Voltage
Place of Origin:CN
Brand Name:Liantu
Rated Voltage:600V
Tensile Strength:20N/CM

PVC electric insulation adhesive tape

pvc tape is made from soft polyvinyl chloride (pvc) film as the backing material, is coated with rubber pressure-sensitive adhesive. It has such features as flame retardant,good insulation,voltage resistance,high temperature resistance and so on.

It widely used for insulation protection of wires,cables,pipes.etc.

Features:

1.thickness: 0.11-0.2mm

2.length: 4-30m

3.stripping degree(N/CM):1.6-1.8

4.tensile strength(N/CM): 16-28

5.breakdown voltage(KV):6.5-8

Specification

Specifications: LTD13191
Property	Value	Unit	Test Method
Total thickness	0.13	mm	ASTM-D-1000
Tensile strength	20	N/cm	ASTM-D-1000
Elongation at break	200	%	ASTM-D-1000

Adhesion Strength:
to steel	1.5	N/cm	ASTM-D-1000
to backing	1.5	N/cm	ASTM-D-1000
voltage resistance	600	V	UL510
Temperature Resistance	80	℃	ASTM-D-1000
Date in table represent average test results are not be used for specification purposes
